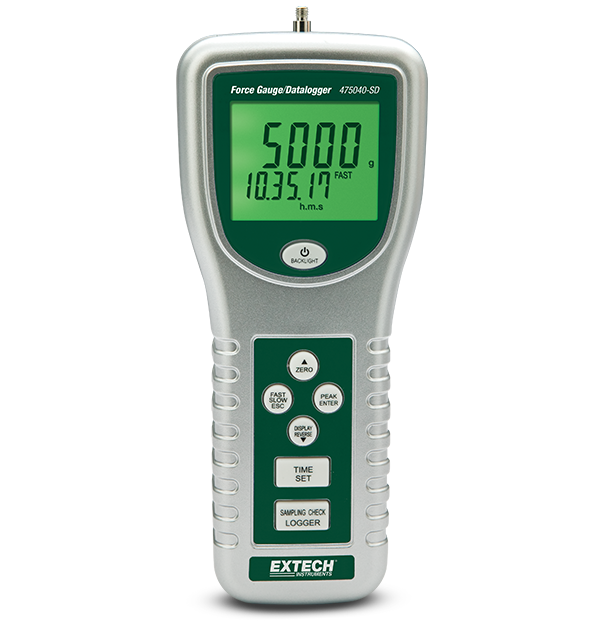

Extech 475040-SD
Digital Force Gauge/Datalogger
The Extech 475040-SD Digital Force Gauge/Datalogger dates, time stamps, and stores up to 2 M of push/pull readings on an SD card in Excel format for easy transfer to a PC. Featuring a 5 digit LCD display with peak hold, exclusive load cell measurement transducer, and an overrange, low battery, and advanced function indicator. It has 5 kg/176 oz/49 Newtons measurement capacity with 0.5% basic accuracy and auto power off. Complete with SD card, tension rod, carrying case and 4 adapters (flathead, cone, chisel, and hook for tension), and 6 AA batteries.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Capacidad de sobrecarga | 10kg |
| Detección de escala completa | 2.00mm |
| Frecuencia de actualización | Fast mode 0.2secs; Slow mode 0.6secs |
| Fuerza | 176oz, 5000g, 49 Newtons |
| Memoria | SD Card |
| Precisión básica de fuerza | ±(0.4%) |
| Resolución máx. de fuerza | 0.05oz, 1g, 0.01 Newtons |
| Tipo de transductor | Load cell |
| Detalles adicionales | |
|---|---|
| Alimentación | 6 × AA batteries |
| Certificaciones | CE |
| Dimensiones | 8.5 × 3.5 × 1.8" (215 × 90 × 45mm) |
| Garantía | 2years |
| Peso | 1.4 lbs (650g) |
Resources & Support
User Manual
Manual del usuário de Extech 475040-SD 475044-SD
Datasheet
Extech 475040-SD-475044-SD Datasheet
Certification
Extech 475040-SD Declaration of Conformity
User Manual
Extech 475040 475044 User Manual GB
User Manual
Extech 475040-SD475044-SD User Manual GB
