Discontinued
Extech AUT30M
30A Current Tester

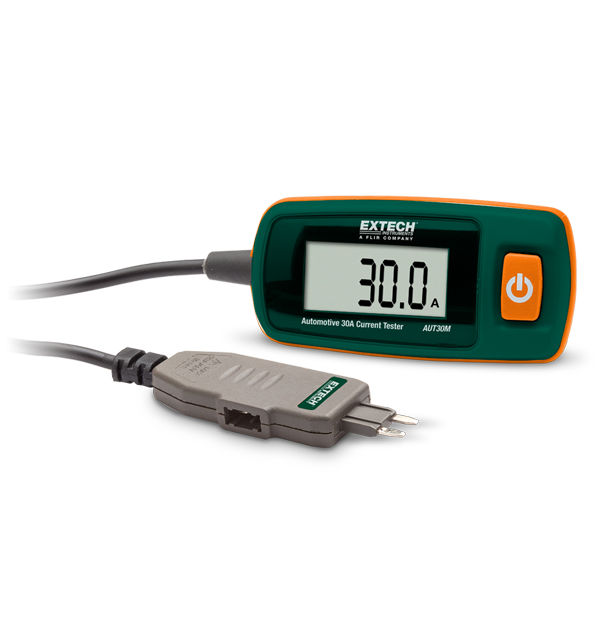

Check up to 30 Amps without breaking the circuit with the Extech AUT30M Current Tester. Mini-blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD. Includes 71 cm (28 in) connector cable.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Corriente CC | 0 to 30A DC |
| Distancia de detección | <0.2" |
| Longitud de cable | 71cm (2.3 ft.) |
| Precisión básica de corriente CC | 10mA |
| Resolución máx. de corriente CC | ±(2.0% of reading + 2 digits) |
| Voltaje CC | 48V DC |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × A23G (12V) battery |
| Certificaciones | CE |
| Dimensiones | 159 × 25mm (6.25 × 1") |
| Garantía | 1 year |
| Peso | 42g (1.5 oz) |
Recursos y asistencia
User Manual
Manual del usuário de Extech AUT30 AUT30M
Certification
Extech AUT30M Declaration of Conformity
User Manual
Extech AUT30 AUT30M User Manual GB
Datasheet
Extech AUTxx Datasheet
