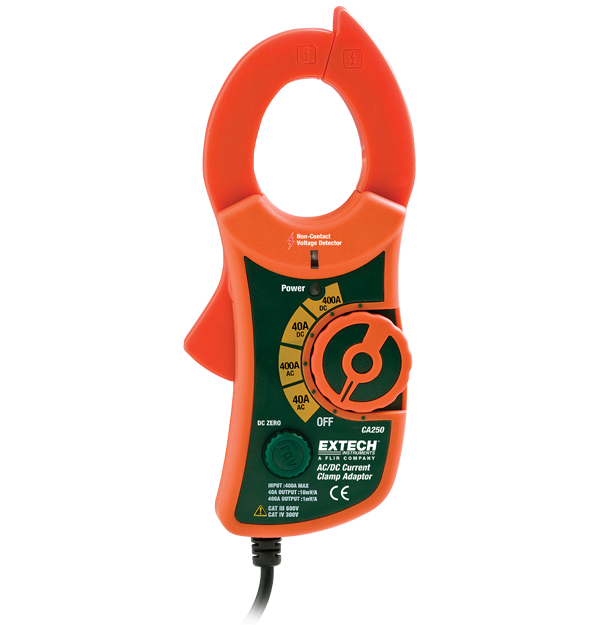

Extech CA250
400A AC/DC Clamp-on Adaptor + NCV
The Extech CA250 is a 400 A AC/DC Clamp-on Adaptor with built in NCV that can be used with any multimeter with a 1 mV input and accepts standard banana plugs. It has a 30 mm (1.2 in) clamp jaw and 2.5% accuracy. Additional features include a built in, non-contact voltage detector with LED alerts and a DC zero adjust. Comes complete with built in 1.1 m (3.8 ft) cable with banana plugs and two AAA batteries.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Corriente CA | 0 to 40A (10mV per Amp output); 0 to 400A (1mV per Amp output) |
| Corriente CC | 0 to 40A (10mV per Amp output); 0 to 400A (1mV per Amp output) |
| Frecuencia | 50/60Hz |
| Precisión básica de corriente CC | ±(2.5% of rerading + 0.1A) at 0 to 40A; ±(2.8% of reading + 0.5A) at 0 to 400A |
| Precisión de corriente CA básica | ±(2.5% of rerading + 0.1A) at 0 to 40A; ±(2.8% of reading + 0.5A) at 0 to 400A |
| Tamaño de la mordaza | 30mm (1.2") |
| Detalles adicionales | |
|---|---|
| Alimentación | 2 × AAA (1.5V) batteries |
| Categoría de seguridad | CATIII - 600V, CATIV - 300V |
| Certificaciones | CE |
| Dimensiones | 5.8 × 2.3 × 1.3" (146 × 60 × 32mm) |
| Garantía | 2 years |
| Peso | 8oz (226g) |
Resources & Support
User Manual
Manual del usuário de Extech CA250
User Manual
Extech CA250 User Manual GB
Datasheet
Extech CA250 Datasheet
Certification
Extech CA250 Declaration of Conformity
