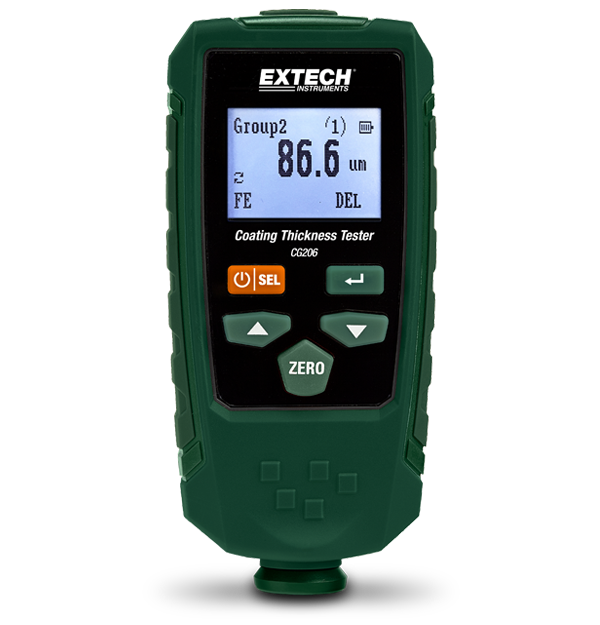

Extech CG206
Comprobador de grosor de recubrimientos
La tecnología doble brinda reconocimiento automático para sustratos ferrosos y no ferrosos sin tener que adivinar el material. Permite un funcionamiento rápido con una sola mano, medición no destructiva del espesor del recubrimiento en varias superficies.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Coating Thickness [Ferrous] | De 0 a 1350 µm (de 0 a 53 mils) |
| Coating Thickness [Ferrous] Basic Accuracy | ±2,5 % |
| Coating Thickness [Ferrous] Max Resolution | 0,1 µm (0,004 mils) |
| Coating Thickness [Non_Ferrous] | De 0 a 1350 µm (de 0 a 53 mils) |
| Coating Thickness [Non_Ferrous] Basic Accuracy | ±2,5 % |
| Coating Thickness [Non_Ferrous] Max Resolution | 0,1 µm (0,004 mils) |
| Min Curvature Radius [Ferrous] | 1,5 mm (59,06 mils) |
| Min Curvature Radius [Non_Ferrous] | 3 mm (118,1 mils) |
| Min Diameter [Ferrous] | 7 mm (275,6 mils) |
| Min Diameter [Non_Ferrous] | 5 mm (196,9 mils) |
| Min Thickness [Ferrous] | 0,5 mm (19,69 mils) |
| Min Thickness [Non_Ferrous] | 0,3 mm (11,81 mils) |
| Working Principle [Ferrous] | Inducción magnética |
| Working Principle [Non_Ferrous] | Corriente inducida |
| Detalles adicionales | |
|---|---|
| Certifications | CE |
| Dimensions | 113,5 × 54 × 27 mm (4,5 × 2,1 × 1,1") |
| Power | 2 pilas AAA (1,5 V) |
| Warranty | 2 años |
| Weight | 110 g (3,9 oz) |
Resources & Support
Nota: Debe haber iniciado sesión para descargar software o firmware. Inicie sesión o cree una cuenta.
Software Download
Extech Coating Thickness Tester Software
Datasheet
Extech CG206 Datasheet
User Manual
Extech CG206 User Manual
Certification
Extech CG206 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
