Discontinued

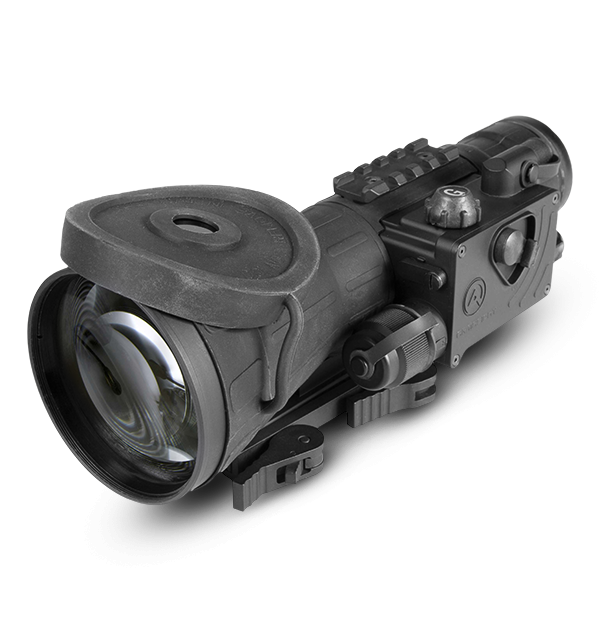

FLIR CO-LR-LRF

108 mm Night Vision Clip-On System

Designed for long-range target detection and engagement, the FLIR CO-LR-LRF adds high-performance night vision to any standard day scope. Using an existing ballistic reticle for shot placement, the CO-LR-LRF provides immediate precision by quickly mounting in front of day optics—no rezeroing needed. Variable gain control and included XLR IR illuminator further enhance imaging in challenging light conditions.

Unwavering Precision After Dark

108 mm lens and Gen 2+/Gen 3 intensifier tubes capture excellent night vision downrange.

Front-mounting allows consistent ballistic reticle use, eliminating the need to rezero, and maintains familiar shooting position.

Quick-release Picatinny mounting ensures proper rail position and installs in seconds—no tools required.

Especificaciones

Sensor y óptica
Ajuste de dioptría	-
Alivio ocular (mm)	-
Aumento	1× (recommended to use with up to 12x day time optics)
Campo de visión	9°
Control de brillo automático	Yes
Corte_de luz brillante	Yes
Diámetro de pupila de salida (mm)	50 mm
Generación de IIT	Gen 2+ QS ("Quick Silver" White Phosphor) MG
Iluminador de infrarrojos	Detachable Long Range IR
Rango de enfoque	25 m to Infinity
Resolución	47-54 lp/mm
Sistema de lente	F/1.54; 108 mm
Tipo de fotocátodo	Multi-Alkali

Características medioambientales y aprobaciones
Temperatura de almacenamiento	-50°C to +70°С (-58°F to +158°F)
Temperatura operativa	-40°C to +50°С (-40°F to +122°F)

Alimentación
Apagado automático	Yes
Duración de la batería	Up to 45 hours
Fuente de alimentación	CR123 Lithium 3V (1) or AA Alkaline 1.5V (1) or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1)
Indicador de baja carga de la pila	Yes (in FOV)

Almacenamiento de archivos y comunicación
Control remoto	Wireless

UI-UX
Color de retícula	-
Control de ganancia manual	Yes
Indicador de IR	No

Descripción general del sistema
Ajuste de la elevación_y corrección del viento	-
Altura del eje de óptica sobre el raíl	40 mm
Garantía	2 Years
Tipo de retícula	-

Características físicas
Dimensiones (L × An × Al)	240 х 97 х 87 mm (9.4 х 3.8 х 3.4 in)
Montaje en trípode	-
Peso del producto	1.1 kg (2.4 lbs)

Accesorios
Accesorios incluidos	Battery adapter CR123A 3V / AA 1.5V, XLR-IR850 Detachable X-Long Range Infrared Illuminator, Adjustment-Control-DeviceBattery, Picatinny adapter for AWReC (Advanced Wireless Remote Control), AWReC (Advanced Wireless Remote Control) #94, Instruction Manual with Warranty Card, Special Wrench, Light-Suppressor, Soft carrying Case, Packing Box, Lens Tissue
Accesorios opcionales	Extended Rail Adapter #85, FSRS (Front Scope Rail System) #38, Mil-Standard Hard Shipping/Storage Case #102, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, AMRF2200 - Advanced Modular Range Finder
