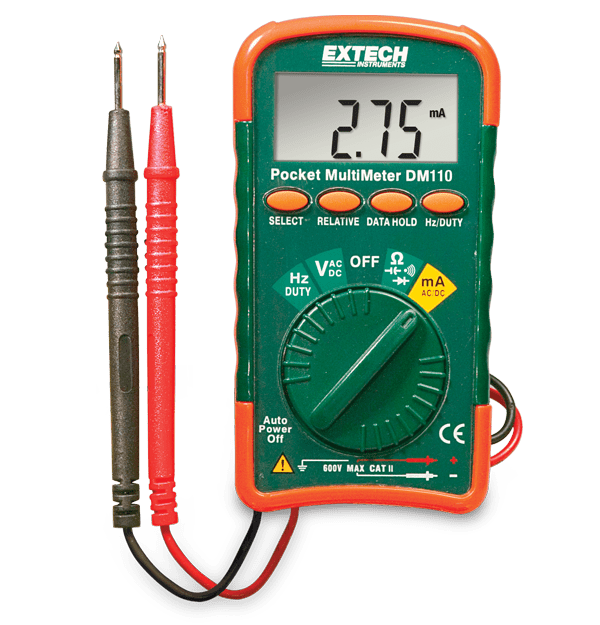

Extech DM110
Mini Pocket MultiMeter
Extech's DM110 offers full function versatility and the most pocket-friendly multimeter size available. The compact, autoranging DM110 digital Mini Multimeter is equipped with capabilities that are perfect for a electrical hobbyist, electronics tinkerer, or DIYer. Use this meter to perform more in depth testing to troubleshoot anything connected to an outlet, such as any electronic devices found around the home and garage. The DM110 is great for automotive and marine electrical applications, A/V projects, Arduino projects, and secondary home wiring systems like security alarms and thermostat circuits. It includes a protective rubber holster with storage clips to retain the integrated test leads, soft carrying case, CR2032 button battery, user manual, and one year limited warranty.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Capacitancia | 100µF |
| Ciclo de trabajo | 0.1% to 99.9% |
| Continuidad | Yes |
| Corriente CA | 400mA |
| Corriente CC | 400mA |
| Frecuencia | 5Hz to 10MHz |
| Precisión básica de corriente CC | ±2.0% |
| Precisión básica de frecuencia | ±2% |
| Precisión básica de tensión CA | ±2.3% |
| Precisión básica de tensión CC | ±1.3% |
| Precisión básica del ciclo de trabajo | ±1.2% |
| Precisión de corriente CA básica | ±2.5% |
| Prueba de diodos | Yes |
| Resistencia | 400 to 40MΩ |
| Resolución básica de tensión CC | 1mV |
| Resolución máx. de capacitancia | 0.001nF |
| Resolución máx. de corriente CA | 0.01mA |
| Resolución máx. de corriente CC | 0.01mA |
| Resolución máx. de frecuencia | 0.001Hz |
| Resolución máx. de resistencia | 0.1Ω |
| Resolución máx. de tensión CA | 1mV |
| Resolución máx. del ciclo de trabajo | 0.10% |
| Voltaje CA | 500V |
| Voltaje CC | 500V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × CR2032 (3V) battery |
| Categoría de seguridad | CATII - 600V |
| Certificaciones | CE, UL |
| Dimensiones | 4.25 × 2.2 × 0.5”(108 × 56 × 11.5mm) |
| Garantía | 2 years |
| Peso | 1.7oz (50g) |
