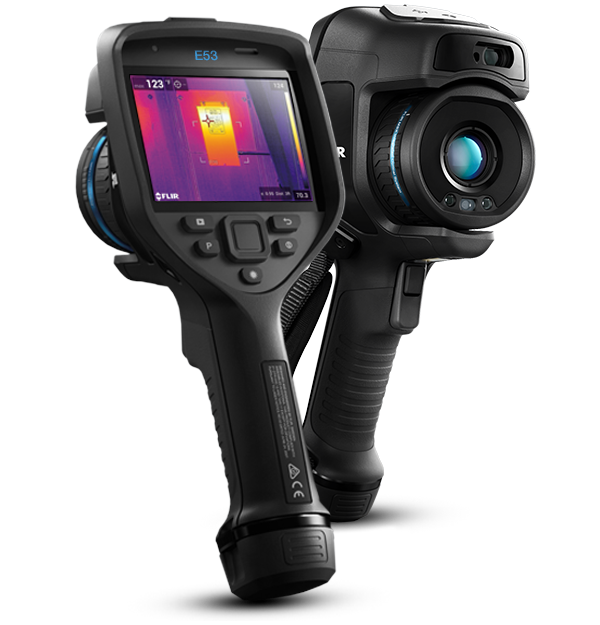

FLIR E53

DISPONIBILIDAD LIMITADA

Product Variations

La FLIR E53 es la iniciación a la serie Exx, con la resolución y la sensibilidad que necesita al precio adecuado. La resolución original de 240 × 180 ofrece más de 43,200 puntos de medición de temperatura y produce imágenes nítidas y vibrantes, que se pueden mejorar con el MSX® patentado de FLIR para una perspectiva adicional.

COMPLETAMENTE REIMAGINADA
La relación de tamaño de punto de la E53 le permite tomar las lecturas más precisas en objetivos más pequeños, a más distancia.
La E53 mide hasta 650 °C (1200 °F), ofrece tres medidores puntuales y muestra la temperatura máxima/mínima en un área en directo en pantalla.
Las carpetas de trabajo, un micrófono integrado para la anotación por voz y las características de generación de informes ayudan a la E53 a racionalizar su jornada laboral.

Especificaciones

Highlighted
Thermal Sensitivity_NETD <40 mK, 24° @ +30°C (+86°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Storage Media Removable SD card (8 GB)
Generación de imágenes y óptica
Color palettes Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Minimum Focus Distance 0.15 m (0.49 ft.), 24°
Minimum Focus Distance with MSX 0.5 m (1.64 ft.), 24°
MSX Embosses visual details on full resolution thermal image
Non_radiometric IR video streaming H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture_in_Picture Resizable and movable
Radiometric IR video recording Real-time radiometric recording (.csq)
Radiometric IR video streaming Over UVC
Resolution 640 × 480 pixels (VGA)
Screen EST Mode Yes
Sketch From touchscreen
Spatial resolution [IFOV] 1.09 mrad/pixel, 24°
Spectral Range 7.5 - 14.0 µm
Thermal Sensitivity_NETD <40 mK, 24° @ +30°C (+86°F)
UltraMax Super-resolution process quadruples pixel count, activated in FLIR Tools+
Viewfinder No
Visual Video Streaming Yes
Medición y análisis
Accuracy ±2°C (±3.6°F) or ±2% of reading for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Accuracy [Drift] in Screen EST Mode Accuracy (drift): ±0.3°C (±0.5°F)
Area Box 1 in live mode
Measurement Corrections Yes
Measurement Presets No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Object Temperature Range •–20 to +120°C (–4 to 248°F) •0–650°C (32–1200°F) • +300°C to +1200°C (572–2192°F)
Reference Temperature Yes
Sampling Average in Screen EST Mode Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature
Spot Meter 3 in live mode
Interfaz de usuario
Text Text from predefined list or soft keyboard on touchscreen
Voice 60 seconds built-in microphone and speaker (and via Bluetooth) on still images and video
Comunicación y almacenamiento de datos
METERLiNK Wireless connection (Bluetooth) to: FLIR meters with METERLiNK
Storage Media Removable SD card (8 GB)
USB USB Type-C: data transfer/video/power
USB_Standard USB 2.0 High Speed
Video Out DisplayPort over USB Type-C
WiFi Peer to peer (ad hoc) or infrastructure (network)
Alimentación
Battery operating time Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical use
Battery Type Li-ion battery, charged in camera or on separate charger
Power Management Automatic shut-down and sleep mode
Características medioambientales y certificaciones
Operating Temperature Range –15°C to 50°C (5°F to 122°F)
Radio Spectrum •ETSI EN 300 328 •FCC Part 15.249 •RSS-247 Issue 2
Safety EN/UL/CSA/PSE 60950-1
Storage Temperature Range –40°C to 70°C (-40°F to 158°F)
Tripod Mounting UNC 1/4"–20
Warranty http://www.flir.com/warranty/
General
Alarm Moisture, insulation, and measurement
Packaging Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)
Packaging Size 500 x 190 x 370 mm (19.7 x 7.5 x 14.6 in.)

Accessories

  1. Remote operation button (T131171ACC)
  1. Extended Warranty for VS290, E53, E54-EST, A3x(SC), A6x(SC)
  1. Aplicación FLIR InSite
  1. FLIR Screen-EST Auto Mode Firmware Upgrade (T850112)
  1. USB Type-C to USB Type-C Cable (T911705ACC)
  2. USB 2.0 A to USB Type-C cable (T911631ACC)
  1. Car Adapter (T911706ACC)
  2. Power Supply, 15 W/3 A (T911630ACC)
  3. Fuente de alimentación para cargador de batería (T911633ACC)
  4. Battery Charger (T199425ACC)
  1. Pouch for FLIR E-Series (T911689ACC)
  2. Accessory Box II for Exx-Series (T199557ACC)
  3. Hard Transport Case (T199346ACC)
