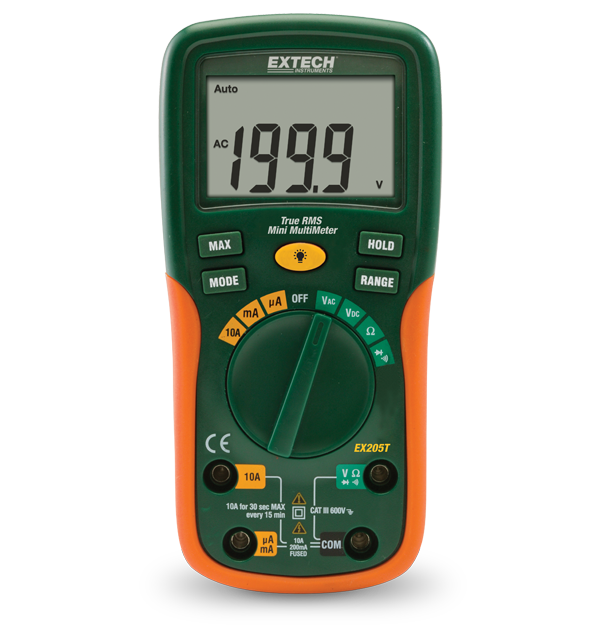

Extech EX205T
TrueRMS Digital Multimeter
The Extech EX205T is a True RMS Digital Multimeter which provides true AC readings when measuring distorted or non-sinusoidal waveforms plus noisy signals. This model is also auto ranging, which means it automatically displays readings with the proper decimal place location and maximum resolution. Featuring a large 2000 count, backlit dual LCD with easy to read digits, this multimeter measures AC/DC voltage, resistance, diode test, and continuity. The meter also makes use of a number of functions including input fuse protection, max hold, auto power off, and data hold functions. Product includes test leads and 9 V battery.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Continuidad | Yes |
| Corriente CA | 10A |
| Corriente CC | 10A |
| Precisión básica de tensión CC | ±0.5% |
| Prueba de diodos | Yes |
| Resistencia | 20MΩ |
| Resolución básica de tensión CC | 0.1mV |
| Resolución máx. de corriente CA | 0.1µA |
| Resolución máx. de corriente CC | 0.1µA |
| Resolución máx. de resistencia | 0.1Ω |
| Resolución máx. de tensión CA | 0.1mV |
| RMS real | Yes |
| Voltaje CA | 600V |
| Voltaje CC | 600V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 600V |
| Certificaciones | CE, NIST |
| Dimensiones | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Garantía | 2 years |
| Peso | 9.17oz (260g) |
Resources & Support
User Manual
Manual del usuário de Extech EX205T
User Manual
Extech EX205T User Manual
Certification
Extech EX205T Declaration of Conformity
Datasheet
Extech EX205T EX210T Datasheet
