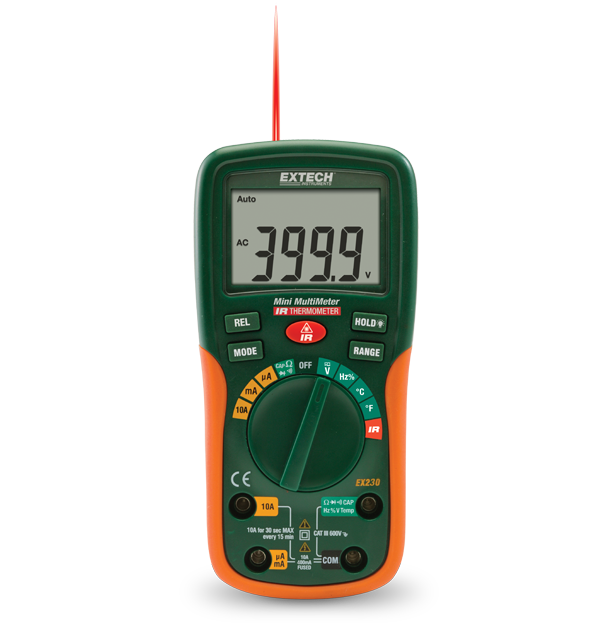

Extech EX230
12 Function Mini Digital MultiMeter with IR Thermometer
The Extech EX230 Mini Digital MultiMeter with built-in IR Thermometer can quickly identify overheating motors and locate hot spots on electrical panels or HVAC vents without contact. The EX230’s rugged design incorporates a 4000 count large backlit dual LCD with easy to read digits, low current capability measure down to 0.1 µA, and input fuse protection. The built in IR Thermometer has a 6:1 distance to target ratio. This meter also features Type K temperature, frequency, capacitance, and duty cycle measurement. It also has relative function, data hold capabilities, and an auto power off function. The EX230 comes complete with test leads, Type K Temperature bead probe, and a 9 V battery.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Capacitancia | 0.01nF to 100µF |
| Ciclo de trabajo | 0.1% to 99.9% |
| Continuidad | Yes |
| Corriente CA | 0.1µA to 10A |
| Corriente CC | 0.1µA to 10A |
| Frecuencia | 0.001Hz to 10MHz |
| Precisión básica de temperatura (IR) | -5 to 446°F (-20 to 230°C) |
| Precisión básica de tensión CC | ±0.5% |
| Prueba de diodos | Yes |
| Resistencia | 0.1Ω to 40MΩ |
| Resolución máx. de temperatura (tipo K) | -4 to 1400°F (-20 to 760°C) |
| Voltaje CA | 0.1mV to 600V |
| Voltaje CC | 0.1mV to 600V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 600V |
| Certificaciones | CE |
| Dimensiones | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| Garantía | 2 years |
| Pantalla | 4000-count segment LCD |
| Peso | 9.17oz (260g) |
