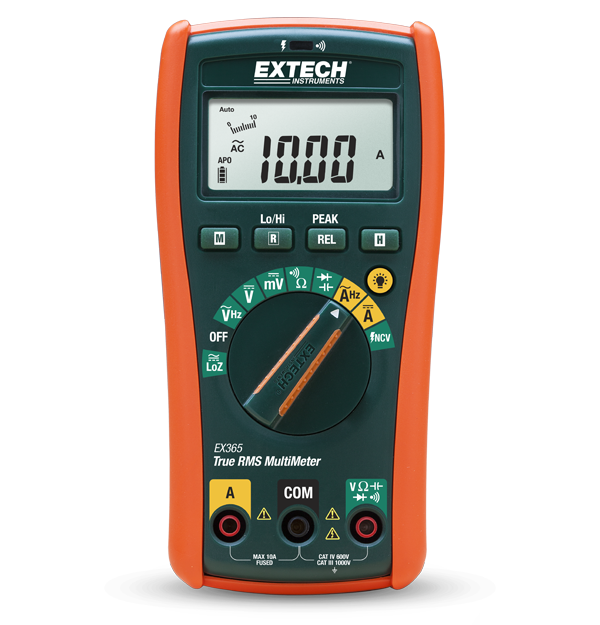

Extech EX365
10 Function True RMS Multimeter
The Extech EX365 is a compact, industrial True RMS Multimeter with a built in non-contact voltage detector. It features highly accurate True RMS measurements, LoZ for the prevention of false readings caused by ghost voltages, .5 % basic accuracy, a 1000 V AC/DC volt range, and resistance up to 40 MΩ. It also has a continuity beeper with visual alert, smart data hold, peak hold, auto power off with disable, relative mode for capacitance zero, and offset adjustment. Additionally, the EX365 excels in frequency and capacitance measurements as well as commercial applications that require AC/DC current measurements from 1 mA to 10 A. Complete with test leads, 9 V battery, holster with tilt stand, and built-in magnet.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Capacitancia | 1nF to 10mF |
| Continuidad | Yes |
| Corriente CA | 1mA to 10A |
| Corriente CC | 1mA to 10A |
| Detector de tensión sin contacto (VSC) | Yes |
| Frecuencia | 0.01Hz to 100kHz |
| Precisión básica de tensión CC | 0.5% |
| Prueba de diodos | Yes |
| Resistencia | 0.1Ω to 40MΩ |
| RMS real | Yes |
| Voltaje CA | 0.1mV to 1000V |
| Voltaje CC | 0.1mV to 1000V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIV - 600V |
| Certificaciones | CE, UL |
| Dimensiones | 6.5 × 3.2 × 1.7" (164 × 82 × 44mm) |
| Garantía | 3 years |
| Peso | 5.9oz (450g) |
Resources & Support
Certification
Extech EX365 Declaration of Conformity
Datasheet
Extech EX36x Datasheet
