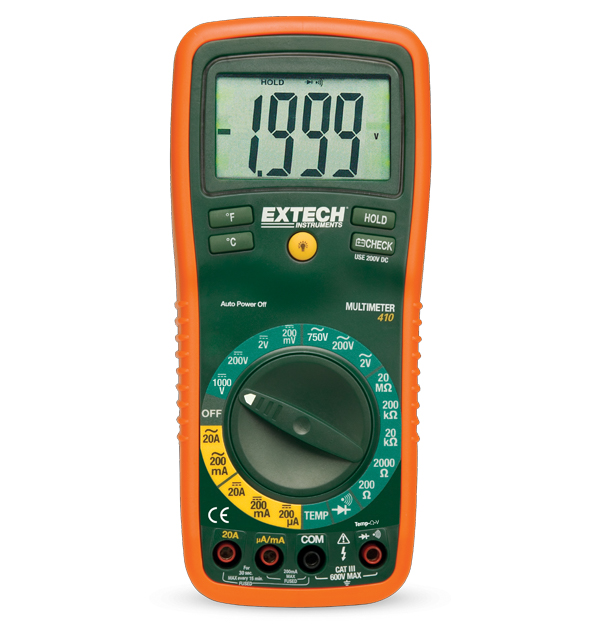

Extech EX410
8 Function Professional MultiMeter
Compact and powerful, the Extech EX410 8 Function true RMS Professional MultiMeter provides the versatility of multiple meters in one convenient device. The EX410 measures AC/DC voltage and current, resistance, diode, and temperance. A large, backlit display and 2.5 cm (1 in) high digits allow for easy reading, while the ergonomically designed housing offers comfortable, one-handed operation. Comes with the multimeter, CAT III test leads, stand, hanging strap, holster with built-in test lead storage, Type K bead wire temperature probe, and one 9 V battery.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Continuidad | Yes |
| Corriente CA | 0.1µA to 20A |
| Corriente CC | 0.1µA to 20A |
| Precisión básica de tensión CC | ±0.5% |
| Prueba de diodos | Yes |
| Resistencia | 0.1Ω to 20MΩ |
| Resolución máx. de temperatura (tipo K) | -4 to 1382°F (-20 to 750°C) |
| RMS real | Yes |
| Voltaje CA | 1mV to 750V |
| Voltaje CC | 0.1mV to 1000V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 600V, CATIV - 1000V |
| Certificaciones | UL |
| Dimensiones | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Garantía | 2 years |
| Peso | 0.75lbs (342g) |
Resources & Support
User Manual
Manual del usuário de Extech EX410
Datasheet
Hoja de datos de Extech EX4xx
User Manual
Extech EX410 User Manual
Datasheet
Extech EX4xx Datasheet
