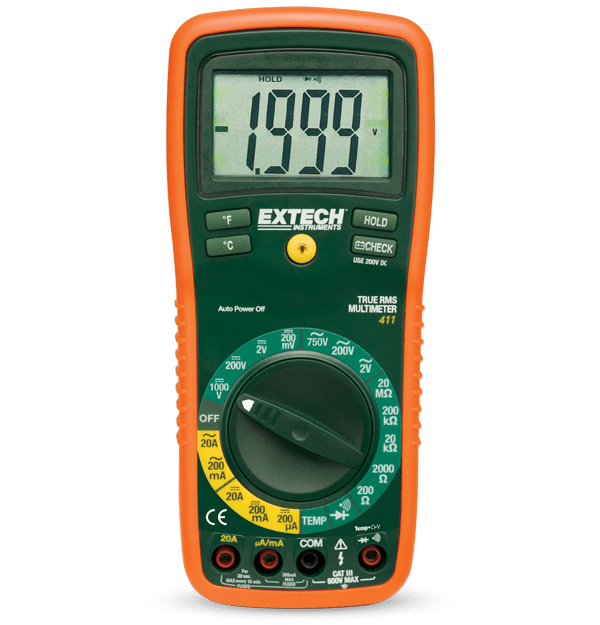

Extech EX411
8 Function True RMS Professional MultiMeter
The Extech EX411 offers multiple functions so you can carry one meter into the field instead of several. The manual ranging EX411 measures AC/DC voltage and current, resistance, diode, and continuity, all with ± 0.5 percent basic accuracy. The unit has low current capability, measuring down to 0.1 µA, and features input fuse protection and misconnection warnings. A Type K thermometer is built in for surface or air temperature measurements. Comes with CAT III test leads, stand, hanging strap, holster with builti n test lead storage, Type K bead wire temperature probe, and battery.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Continuidad | Yes |
| Corriente CA | 0.1mA to 20A |
| Corriente CC | 0.1µA to 20A |
| Precisión básica de corriente CC | ±0.5% |
| Precisión básica de tensión CA | ±0.5% |
| Precisión básica de tensión CC | ±0.3% |
| Precisión de corriente CA básica | ±0.5% |
| Prueba de diodos | Yes |
| Resistencia | 0.1Ω to 20MΩ |
| Resolución máx. de temperatura (tipo K) | -4 to 1382 °F (-20 to 750 °C) |
| RMS real | Yes |
| Voltaje CA | 1mV to 750V |
| Voltaje CC | 0.1mV to 1000V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 600V, CATIV - 1000V |
| Certificaciones | UL |
| Dimensiones | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Garantía | 2 years |
| Peso | 0.75lbs (342g) |
