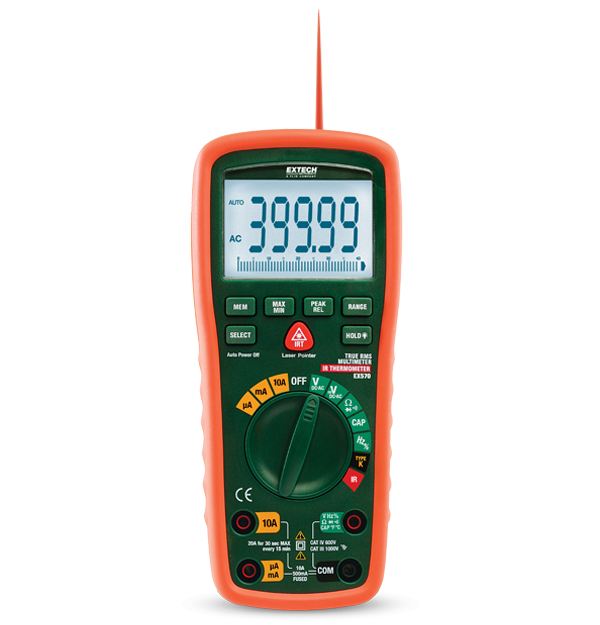

Extech EX570

12 Function True RMS Industrial MultiMeter with IR Thermometer

The rugged Extech EX570 is ideal for industrial/plant maintenance and electrical contractors. It offers advanced multimeter functions, high accuracy (0.06%), True RMS precision plus an integrated infrared thermometer patented by Extech. The EX570 protects users with category IV-600 V and category III-1000 V safety ratings. It measures voltage, millivolt, current, resistance, capacitance, and frequency plus diode and continuity tests. Added functions include min/max, average, hold, relative, peak hold, and quick note memory for 3 readings. Thermocouple temperature readings are complemented by an infrared thermometer for safe, non-contact temperature measurement (30:1 distance to spot ratio). Built in IR simplifies the identification of overheating motors, electrical panels, and other components from a distance and without a separate thermometer. Complete with double-molded test leads, temperature probe, magnetic hanging strap, 9 V battery, and case.

Especificaciones

Especificaciones generales (Extech)
Capacitancia 0.001nF to 10,000µF
Ciclo de trabajo 0.01 to 99.99%
Continuidad Yes
Corriente CA 0.01µA to 20A
Corriente CC 0.01µA to 20A
Frecuencia 0.0001Hz to 40MHz
Precisión básica de temperatura (IR) -22 to 1022°F (-30 to 550°C)
Prueba de diodos 2.8V
Relación de distancia con objetivo 30:1
Resistencia 0.01Ω to 40MΩ
Resolución máx. de temperatura (tipo K) -50 to 1382°F (-45 to 750°C)
RMS real Yes
Voltaje CA 0.01mV to 1000V
Voltaje CC 0.01mV to 1000V
Detalles adicionales
Alimentación 1 × 9V battery
Categoría de seguridad CATIII - 1000V, CATIV - 600V
Certificaciones CE
Clasificación IP IP64
Dimensiones 7.25 × 3.25 × 2.25" (184 × 83 × 57mm)
Garantía 3 years
Pantalla 40000-count segment LCD
Peso 12.3oz (349g)
