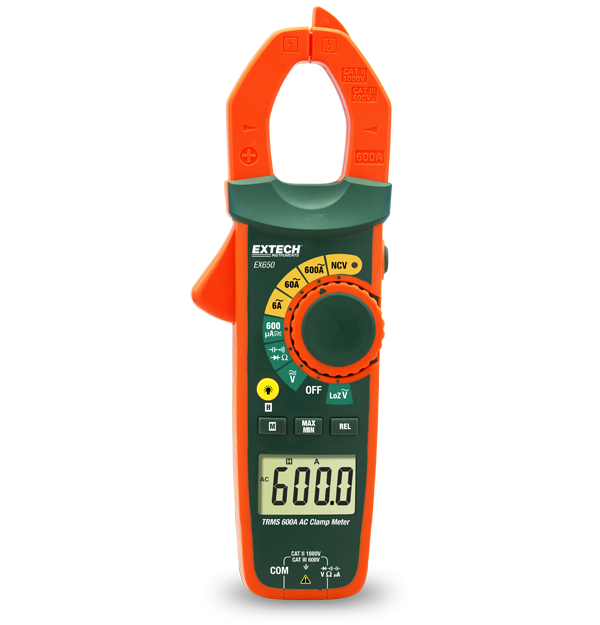

Extech EX650
600A True RMS AC Clamp Meter + NCV
The Extech EX650 is a 600A True RMS AC Clamp Meter. It also measures AC/DC voltage, resistence, capacitance, continuity/diode test and has an NCV detector. The EX650 has a 3 cm (1.18 in) jaw size which accomodates conductors up to 350 MCM. This meter also features a 6000 count backlit LCD display, data hold, min/max, relative function, auto power off, and a convenient LED worklight. Complete with test leads and 3 AAA batteries.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Capacitancia | 60mF |
| Continuidad | Yes |
| Corriente CA | 6A, 60A, 600A |
| Detector de tensión sin contacto (VSC) | 100 to 1000VAC |
| Microcorriente de CA | 600µA |
| Microcorriente de CC | 600µA |
| Precisión básica de tensión CA | ±1.2% of reading |
| Precisión básica de tensión CC | ±0.8% of reading |
| Precisión de corriente CA básica | ±2.5% of reading |
| Prueba de diodos | Yes |
| Resistencia | 60MΩ |
| Resolución básica de tensión CC | 0.1mV |
| Resolución máx. de capacitancia | 0.01nF |
| Resolución máx. de corriente CA | 0.001A |
| Resolución máx. de microcorriente CA | 0.1µA |
| Resolución máx. de microcorriente CC | 0.1µA |
| Resolución máx. de resistencia | 0.1Ω |
| Resolución máx. de tensión CA | 1mV |
| RMS real | Yes |
| Tamaño de la mordaza | 1.18" (30mm), conductors up to 350MCM |
| Voltaje CA | 750V |
| Voltaje CC | 1000V |
| Detalles adicionales | |
|---|---|
| Alimentación | 3 × AAA (1.5V) batteries |
| Categoría de seguridad | CATIII - 600V, CATII - 1000V |
| Certificaciones | CE, UL |
| Dimensiones | 9 × 3 × 1.6" (228 × 77 × 41mm) |
| Garantía | 3 years |
| Peso | 9.4oz (265g) |
