Discontinued

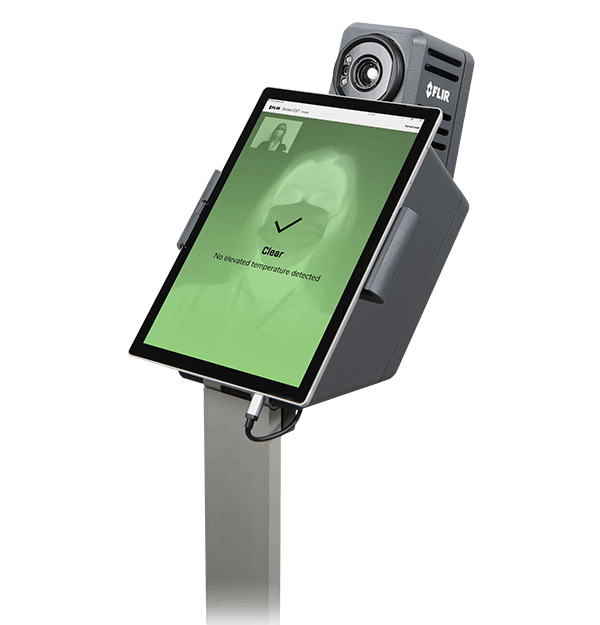

FLIR EST™ Kiosk
Skin Temperature Screening Solution
Quickly screen passengers, customers, or employees for signs of elevated skin temperature with this turnkey solution. The FLIR EST Kiosk combines the temperature measurement capabilities of a thermal imaging camera plus FLIR Screen-EST™ software with the convenience of a tablet display and floor stand. This kiosk sets up in minutes, offering fully automated, self-service screening that targets the inner canthus (corner of the eye) for accurate skin temperature measurement.
Faster, Easier Skin Temperature Screening
Ready to use right out of the box with pre-installed FLIR Screen-EST software, customizable instructions, and alert displays.
Automatically targets the inner canthus for fast, accurate screening.
Advanced factory calibration combined with relative measurement methodology ensures screening accuracy and avoids false-positives.
Especificaciones
| Highlighted | |
|---|---|
| Entrada/salida digital, tipo de conector | M12 12-pin A-coded, Male (shared with external power) |
| Salida digital, propósito | As function of alarm, output to external device, for example when the screening alarm is triggered |
| Salidas digitales | 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC) |
| Codificado | Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric |
| Interfaz Ethernet | Wired, Wi-Fi |
| Wifi | (optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc) or infrastructure (network) |
| Número F | 1.3 |
| Frecuencia de imagen | |
| Frecuencia de la imagen | 30 Hz |
| Resolución | |
| Sensibilidad térmica/NETD | <40 mK at 30°C (86°F) |
| Precisión | ±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software |
| Comunicación y almacenamiento de datos | |
|---|---|
| Codificado | Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric |
| Comunicación Ethernet | TCP/IP socket-based FLIR proprietary |
| Entrada/salida digital, tipo de conector | M12 12-pin A-coded, Male (shared with external power) |
| Entrada/salida digital, voltaje de aislamiento | 500 VRMS |
| Estándar Ethernet | IEEE 802.3 |
| Ethernet | Control, result, image, and power |
| Interfaz Ethernet | Wired, Wi-Fi |
| Salida digital, propósito | As function of alarm, output to external device, for example when the screening alarm is triggered |
| Salidas digitales | 3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC) |
| Tipo de conector Ethernet | M12 8-pin X-coded, Female; RP-SMA, Female |
| Tipo de Ethernet | 1000 Mbps |
| Wifi | (optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc) or infrastructure (network) |
| Generación de imágenes y óptica | |
|---|---|
| Campo de visión (FOV) | 24° × 18° |
| Distancia focal mínima | 0.15 m (0.49 ft) |
| Enfoque | One-shot contrast, motorized, manual |
| Formato de píxel | Video stream – YUV411; Radiometric stream – MONO 16 |
| Frecuencia de imagen | |
| Frecuencia de la imagen | 30 Hz |
| Fuente de imagen | Video stream 0 – visual / IR / MSX®; Video stream 1 – visual; Radiometric video stream – IR |
| Identificación de la lente | Automatic |
| Longitud focal | 17 mm (0.67 in) |
| Matriz de plano focal (FPA) | Uncooled microbolometer |
| Mejora de contraste | FSX® / Histogram equalization (IR only) |
| Número F | 1.3 |
| Paso del detector | 17 µm |
| Rango espectral | 7.5–14 µm |
| Resolución de IR | 464 × 348 |
| Resolución de transmisión | Video stream 0 – 640 × 480 pixels; Video stream 1 – 1280 × 960 pixels; Radiometric stream – 464 × 348 pixels |
| Resolución espacial (IFOV) | 0.90 mrad/pixel |
| Sensibilidad térmica/NETD | <40 mK at 30°C (86°F) |
| Superposición | Video stream 0 – With/Without; Video stream 1 – No |
| Vídeo Transmisión | Bit rate set through camera web |
| Medición y análisis | |
|---|---|
| Precisión | ±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software |
| Rango de temperatura del objeto | 15°C to 45°C (59°F to 113°F) |
| General | |
|---|---|
| Contenido del paquete | Camera, Surface® Pro7 tablet, tablet stand, cables (Europe, UK, US), screening position floor sticker (T131181), FLIR Screen-EST™ license card, printed documentation |
| Peso | 8.3 kg (18 lb.) |
| Tamaño (L. × An. × Al.) | 360 × 270 × 1300 mm (14 × 11 × 51.2 in) |
| Características medioambientales y certificaciones | |
|---|---|
| Garantía | http://www.flir.com/warranty/ |
| Alimentación | |
|---|---|
| Conexión de alimentación | Camera: M12 12-pin A-coded, Male (shared with Digital I/O) |
| Consumo de energía | 7.5 W at 24 V DC typical; 7.8 W at 48 V DC typical; 8.1 W at 48 V PoE typical |
| Funcionamiento con alimentación externa | 24/48 V DC 8 W max |
| Tensión externa | Allowed range 18–56 V DC |
| Interfaz de usuario | |
|---|---|
| Interfaz web | Yes |
