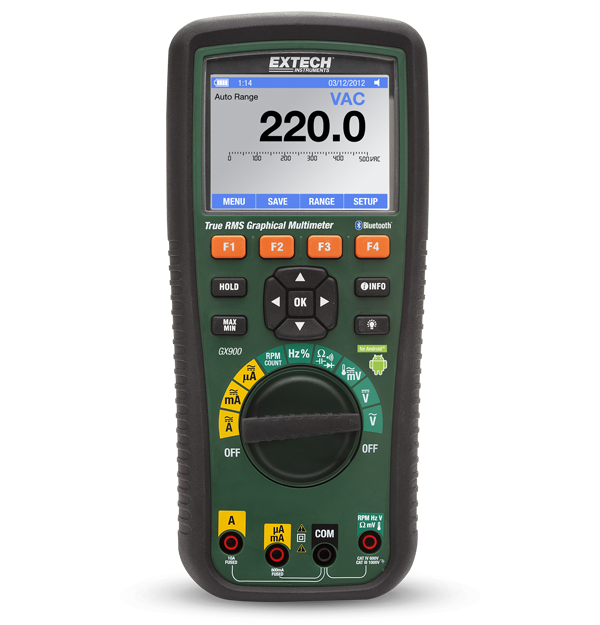

Extech GX900
True RMS Graphical MultiMeter with Bluetooth®
The Extech GX900 is a True RMS Graphical Multimeter with Bluetooth® which transmits key electrical readings to Android mobile devices. The GX900 measures AC/DC current and voltage, resistance, capacitance, frequency, temperature, duty cycle, conductance, RPM, ACV bandwidth, and diode continuity. It features a 50,000 count display with bargraph, a free Android app, data logging (to 2500 readings), Windows compatible software, peak hold, min/max/average modes, relative (%), data hold, automatic data hold, and an auto power off function. Meter comes with double molded test leads, hanging strap, Type K bead wire temperature probe, PC software, and six AA batteries.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Ancho de banda de frecuencia | 100kHz |
| Capacitancia | 0.001nF to 10mF |
| Ciclo de trabajo | 0.1 to 99.9% |
| Conductancia | 50µS |
| Continuidad | Yes |
| Corriente CA | 0.01µA to 10A |
| Corriente CC | 0.01µA to 10A |
| Frecuencia | Electrical: 40.00Hz to 10kHz; Electronic: 0.001Hz to 10MHz |
| Prueba de diodos | 3.2V |
| Resistencia | 0.001Ω to 50MΩ |
| Resolución máx. de temperatura (tipo K) | -58 to 1832 °F (-50 to 1000 °C) |
| RMS real | Yes |
| Señal [dBm/dBV] | -70 to 60dB (nine selectable impedances) |
| Velocidad de rotación (recogida inductiva) | 12,000RPM |
| Voltaje CA | 0.001mV to 1000V |
| Voltaje CC | 0.001mV to 1000V |
| Detalles adicionales | |
|---|---|
| Alimentación | 6 × AA (1.5V) batteries |
| Categoría de seguridad | CATIII -1000V, CATIV - 600V |
| Certificaciones | CE, FC |
| Dimensiones | 9.25 × 4.25 × 2.5" (235 × 108 × 63.5mm) |
| Garantía | 2 years |
| Pantalla | 50000-count TFT LCD with bargraph |
| Peso | 1.85lbs (839g) |
Resources & Support
User Manual
Manual del usuário de Extech GX900
User Manual
Extech GX900 User Manual
Certification
Extech GX900 Declaration of Conformity
Datasheet
Extech GX900 Datasheet
