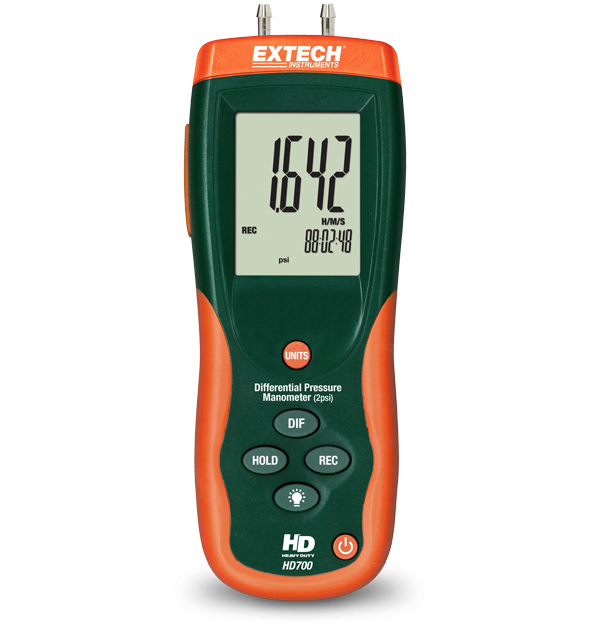

Extech HD700

Manómetros de presión diferencial (2 psi)

Al ofrecer 11 unidades de medida seleccionables, el manómetro de presión diferencial HD700 puede servir como un indicador de rango bajo/alta resolución o proporcionar una presión diferencial de hasta 0 a 55,40 pulgadas. H2O (pulgadas de agua). El registro de mín./máx./ promedio y marca de hora relativa son funciones útiles, al igual que las funciones de retención de datos y apagado automático del HD700. El 2 psi HD700 también cuenta con la función de cero para corrección o medición de compensación y una interfaz USB incorporada. Viene Incluye batería de 9 V, software con cable USB, adaptador de CA, manguera de conexión, soporte integrado y estuche de transporte rígido.

Especificaciones

Especificaciones generales (Extech)
Pressure [bar] 0.137bar
Pressure [bar] Basic Accuracy ±0.3% full scale
Pressure [bar] Max Resolution 0.001bar
Pressure [cmH2O] 140cmH₂O
Pressure [cmH2O] Basic Accuracy ±0.3% full scale
Pressure [cmH2O] Max Resolution 0.1cmH₂O
Pressure [ftH2O] 4.616ftH₂O
Pressure [ftH2O] Basic Accuracy ±0.3% full scale
Pressure [ftH2O] Max Resolution 0.001ftH₂O
Pressure [inH2O] 55.40inH₂O
Pressure [inH2O] Basic Accuracy ±0.3% full scale
Pressure [inH2O] Max Resolution 0.01inH₂O
Pressure [inHg] 4.072inHg
Pressure [inHg] Basic Accuracy ±0.3% full scale
Pressure [inHg] Max Resolution 0.001inHg
Pressure [kgcm2] 0.140kgcm²
Pressure [kgcm2] Basic Accuracy ±0.3% full scale
Pressure [kgcm2] Max Resolution 0.001kgcm²
Pressure [kPa] 13.78kPa
Pressure [kPa] Basic Accuracy ±0.3% full scale
Pressure [kPa] Max Resolution 0.01kPa
Pressure [mbar] 137.8mbar
Pressure [mbar] Basic Accuracy ±0.3% full scale
Pressure [mbar] Max Resolution 0.1mbar
Pressure [mmHg] 103.4mmHg
Pressure [mmHg] Basic Accuracy ±0.3% full scale
Pressure [mmHg] Max Resolution 0.1mmHg
Pressure [ozin2] 32ozin²
Pressure [ozin2] Basic Accuracy ±0.3% full scale
Pressure [ozin2] Max Resolution 0.01ozin²
Pressure [psi] 2psi
Pressure [psi] Basic Accuracy ±0.3% full scale
Pressure [psi] Max Resolution 0.001psi
Detalles adicionales
Certifications CE
Dimensions 8.2 × 2.9 × 1.9" (210 × 75 × 50mm)
Power 1 × 9V battery
Warranty 3 years
Weight 9.8oz (280g)
