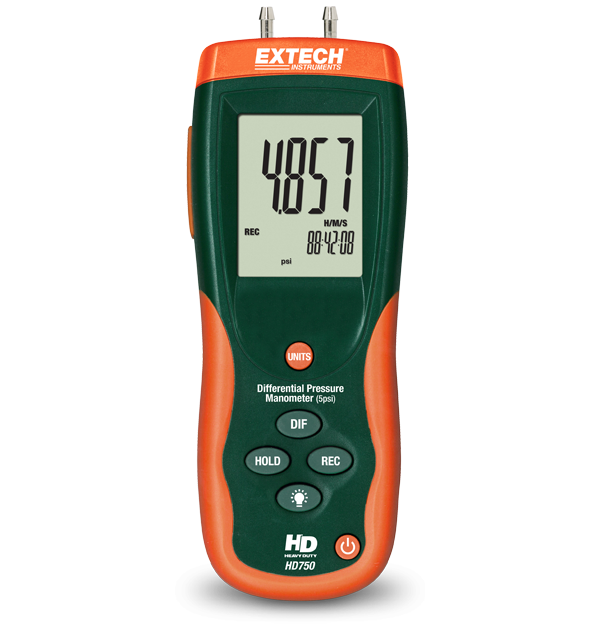

Extech HD750

Manómetros de presión diferencial (5 psi)

Al ofrecer 11 unidades de medida seleccionables, el manómetro de presión diferencial HD750 puede servir como un indicador de rango bajo/alta resolución o proporcionar una presión diferencial de hasta 0 a 138,3 pulgadas. H2O (pulgadas de agua). El registro de mín./máx./promedio y marca de hora relativa son funciones útiles, al igual que las funciones de retención de datos y apagado automático del HD750. El 5psi HD750 también cuenta con la función de cero para corrección o medición de compensación y una interfaz USB incorporada. Viene completo con batería de 9 V, software con cable USB, adaptador de CA, manguera de conexión, soporte integrado y estuche de transporte rígido.

Especificaciones

Especificaciones generales (Extech)
Pressure [bar] 0.344bar
Pressure [bar] Basic Accuracy ±0.3% full scale
Pressure [bar] Max Resolution 0.001bar
Pressure [cmH2O] 351.5cmH₂O
Pressure [cmH2O] Basic Accuracy ±0.3% full scale
Pressure [cmH2O] Max Resolution 0.1cmH₂O
Pressure [ftH2O] 11.53ftH₂O
Pressure [ftH2O] Basic Accuracy ±0.3% full scale
Pressure [ftH2O] Max Resolution 0.01ftH₂O
Pressure [inH2O] 138.3inH₂O
Pressure [inH2O] Basic Accuracy ±0.3% full scale
Pressure [inH2O] Max Resolution 0.1inH₂O
Pressure [inHg] 10.18inHg
Pressure [inHg] Basic Accuracy ±0.3% full scale
Pressure [inHg] Max Resolution 0.01inHg
Pressure [kgcm2] 0.351kgcm²
Pressure [kgcm2] Basic Accuracy ±0.3% full scale
Pressure [kgcm2] Max Resolution 0.001kgcm²
Pressure [kPa] 34.47kPa
Pressure [kPa] Basic Accuracy ±0.3% full scale
Pressure [kPa] Max Resolution 0.01kPa
Pressure [mbar] 344.7mbar
Pressure [mbar] Basic Accuracy ±0.3% full scale
Pressure [mbar] Max Resolution 0.1mbar
Pressure [mmHg] 258.5mmHg
Pressure [mmHg] Basic Accuracy ±0.3% full scale
Pressure [mmHg] Max Resolution 0.1mmHg
Pressure [ozin2] 80ozin²
Pressure [ozin2] Basic Accuracy ±0.3% full scale
Pressure [ozin2] Max Resolution 0.01ozin²
Pressure [psi] 5psi
Pressure [psi] Basic Accuracy ±0.3% full scale
Pressure [psi] Max Resolution 0.001psi
Detalles adicionales
Certifications CE
Dimensions 8.2 × 2.9 × 1.9" (210 × 75 × 50mm)
Power 1 × 9V battery
Warranty 3 years
Weight 9.8oz (280g)

Resources & Support

Nota: Debe haber iniciado sesión para descargar software o firmware. Inicie sesión o cree una cuenta.

Software Download

Extech HD750 Software

You must be logged in to download file.

Certification

Extech HD750 Declaration of Conformity

Descargar

User Manual

Extech HD750 User Manual

Descargar

Datasheet

Extech HD700-HD750-HD755 Datasheet

Descargar
