Discontinued

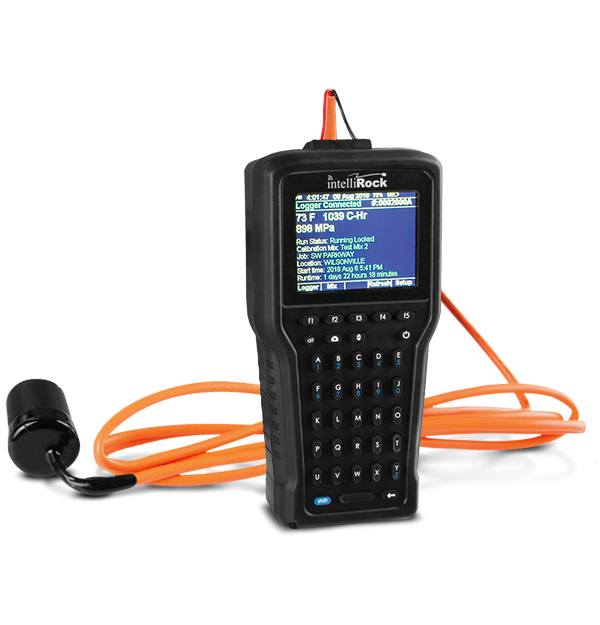

intelliRock III Reader
Concrete Strength and Temperature Profiling System
The intelliRock III reader provides connectivity to loggers in the field so critical decisions can be made at the touch of a button. You can easily activate loggers to start tracking key data points during concrete curing. It features a built–in thermal imager for temperature profiling and onsite problem detection. Use the reader to input important notes and jobsite or location information specific to that logger.
BUILD FASTER, STRIP FORMS EARLIER, OPTIMIZE POST-TENSION WORK
Use the built-in 160 × 120 resolution FLIR thermal imager to identify surface temperature issues and monitor insulation performance or cylinder curing conditions.
View stored temperature and strength data and record important notes in order to keep the project on track
Cut the time spent using equipment rentals, and reduce cement and labor costs
Especificaciones
| Generación de imágenes y óptica | |
|---|---|
| Cámara | 160 × 120 resolution thermal imager |
| Medición y análisis | |
|---|---|
| Almacenamiento de datos en registrador | 999 logger downloads |
| Curva de calibración | Holds 5 calibration curves for strength conversions |
| Madurez | Yes |
| Precisión de temperatura | ±1°C, -20 to 80°C (4 to 176°F), ±2°C, 80 to 99°C (176 to 210.2°F) |
| Precisión de tiempo | 1 minute per month |
| Rango de índice de dosis de sobrecarga | 10 mSv/h to 500 mSv/h (1 rem/h to 50 rem/h) |
| Rango máximo de medición de temperatura | -20°C to 125°C (23°F to 257°F) |
| Resolución de temperatura | 1°C (1.8°F) |
| Temp. | Yes |
| Temperatura | Yes |
| Tiempo | Yes |
| Tiempo y temperatura de almacenamiento máximos | 85°C (185°F) for 5 years |
| Índice de edición de la temperatura | 1 minute (resolution for min/max) |
| Comunicación y almacenamiento de datos | |
|---|---|
| Interfaz PC | USB and Bluetooth |
| Interfaz de usuario | |
|---|---|
| Eventos | 6+ max and min temperature |
| Notas | 8+ job site names and logger locations |
| Alimentación | |
|---|---|
| Batería | Rechargeable |
| Características medioambientales y certificaciones | |
|---|---|
| Temp. operativa de espec. de lector general | -5° to 50°C (23° to 122°F) |
| Temperatura operativa | -20°C to 99°C (-4°F to 210.2°F) |
