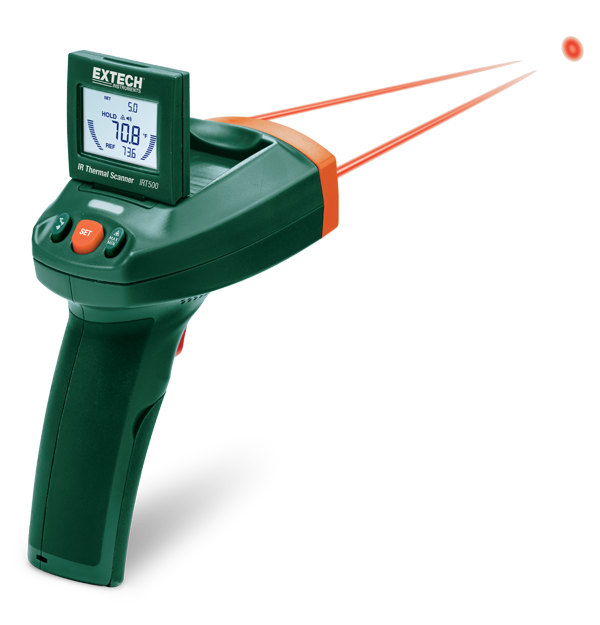

Extech IRT500
Dual Laser IR Thermal Scanner with Adjustable Display
More than just an IR Thermometer, the Extech IRT500 IR Thermal Scanner is designed with a dual laser, an audible/visual alarm feature, 5 preset threshold settings (1°, 5°, 10°, and set min/max), and 3 color LED indicators to make it easy to locate hot and cold spots quickly. Users simply point at targets and scan. The 3 color LED indicates high (red), normal (green), or low (blue) when scanning for temperature irregularities. Likewise, the audible alarm increases as temperature increases or decreases. It features a fast, 150 millisecond response for capturing spikes in temperature. The dual laser indicates ideal measuring distance where the 2 lasers converge to a 2.5 cm (1 in) target spot. Other features include a tilt adjustable LCD display with bright white backlight and dual barographs. Trigger lock function provides continuous use for scanning large areas. Comes with 9 V battery, carrying case, and user manual.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Emisividad | 0.95, fixed |
| Orientación | dual laser |
| Precisión básica de temperatura (IR) | -22 to 500 °F (-30 to 260 °C) |
| Relación de distancia con objetivo | 20:1 |
| Resolución máx. de temperatura (IR) | ±(1% of reading + 3.3 °F/1.5 °C) |
| Temperatura (RTD) | 0.1 °F/ °C |
| Umbral de transición de color | 1°, 5°, 10°,set Min, set Max |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Certificaciones | CE |
| Dimensiones | 6.6 × 3.2 × 2.3" (168 × 82 × 58mm) |
| Garantía | 2 years |
| Peso | 5.7oz (163g) |
Resources & Support
User Manual
Manual del usuário de Extech IRT500
Certification
Extech IRT500 Declaration of Conformity
User Manual
Extech IRT500 User Manual
Datasheet
Extech IRT500 Datasheet
