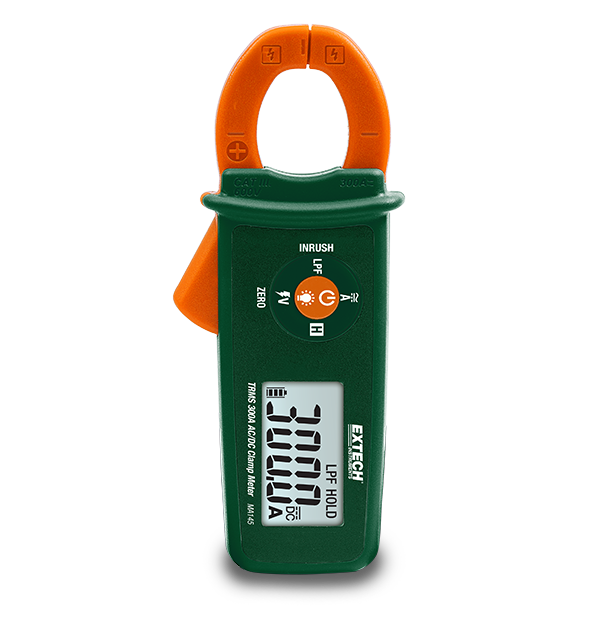

Extech MA145
True RMS 300A AC/DC Clamp Meter
The MA145 is a Compact AC/DC Clamp Meter with NCV detector. This clamp meter takes True RMS measurements for accurate readings of noisy, distorted, or non-sinusoidal waveforms. The MA145 can measure up to 300 A AC and DC. Complete with carrying case and two LR44 batteries. UL listed with a CAT III 600 V safety rating.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Corriente CA | 60A, 300A |
| Corriente CC | 60A, 300A |
| Detector de tensión sin contacto (VSC) | 80 to 600VAC |
| Precisión básica de corriente CC | ±1.5% |
| Precisión de corriente CA básica | ±1.5% |
| Resolución máx. de corriente CA | 0.01A |
| Resolución máx. de corriente CC | 0.01A |
| RMS real | Yes |
| Tamaño de la mordaza | 0.8" (22mm), conductors up to 300MCM |
| Detalles adicionales | |
|---|---|
| Alimentación | 2 × LR44 (1.5V) batteries |
| Categoría de seguridad | CATIII - 600V |
| Certificaciones | CE, UL |
| Dimensiones | 5.8 × 2.4 × 1.2" (147 × 60 × 31mm) |
| Garantía | 2 years |
| Peso | 4.9oz (140g) |
Resources & Support
User Manual
Manual del usuário de Extech MA145
Certification
Extech MA145 Declaration of Conformity
User Manual
Extech MA145 User Manual
Datasheet
Extech MA140 MA145 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
