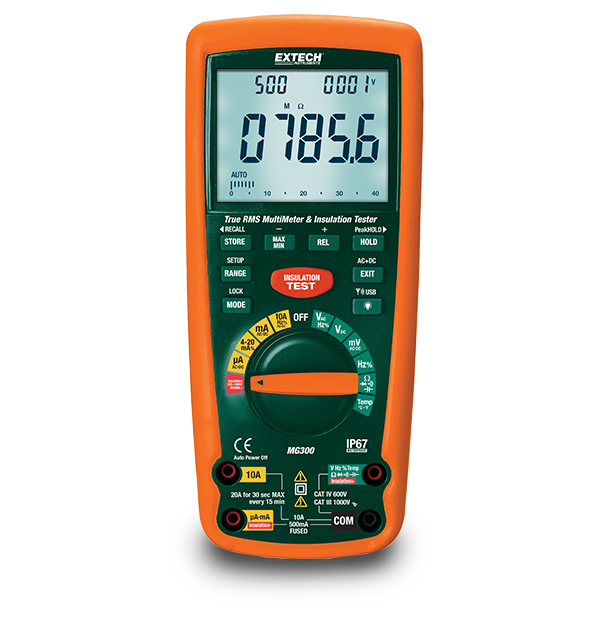

Extech MG300
13 Function Wireless True RMS MultiMeter/Insulation Tester
The Extech MG300 is a True RMS Multimeter with a built in insulation resistance tester that features wireless data streaming for remote monitoring and datalogging. By adding insulation testing capabilities to the ubiquitous digital multimeter, electricians are always equipped for insulation testing. This feature helps make the MG300 a more routine part of predictive maintenance with faster troubleshooting and repairs without additional tools. The rugged and waterproof (IP67-rated) combination meter includes a digital insulation resistance tester (or megohmmeter) with 4 different test voltages for measuring resistance up to 4G Ω with 0.001 MΩ resolution. Complete with remote receiver with USB cable, windows compatible software, heavy duty test leads, alligator clip test lead, Type K bead wire temperature probe with adapter, carrying case, and 6 AA batteries.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Bucle de corriente (4-20 mA) % | -25 to 125% |
| Capacitancia | 40mF |
| Ciclo de trabajo | 0.1 to 99.9% |
| Continuidad | Yes |
| Corriente CA | 10A |
| Corriente CC | 10A |
| Frecuencia | 100MHZ |
| Frecuencia de transmisión inalámbrica | 915MHz |
| Precisión básica de corriente CC | ±1.0% |
| Precisión básica de frecuencia | ±0.1% |
| Precisión básica de resistencia de aislamiento | ±3% |
| Precisión básica de temperatura (tipo N) | 0.1°F (0.1°C) |
| Precisión básica de tensión CA | ±1% |
| Precisión básica de tensión CC | ±0.06% |
| Precisión básica del ciclo de trabajo | ±1.2% |
| Precisión de corriente CA básica | ±1.5% |
| Prueba de diodos | Yes |
| Resistencia | 40MΩ |
| Resistencia de aislamiento | 4MΩ, 40MΩ, 400MΩ, 4000MΩ |
| Resolución básica de tensión CC | 0.01mV |
| Resolución máx. de capacitancia | 0.001nF |
| Resolución máx. de corriente CA | 0.1µA |
| Resolución máx. de corriente CC | 0.01µA |
| Resolución máx. de frecuencia | 0.001HZ |
| Resolución máx. de resistencia | 0.01Ω |
| Resolución máx. de resistencia de aislamiento | 0.001MΩ |
| Resolución máx. de temperatura (tipo K) | -58 to 2192°F (-50 to 1200°C) |
| Resolución máx. de tensión CA | 0.1mV |
| Resolución máx. del bucle de corriente (4-20 mA) % | 0.01% |
| Resolución máx. del ciclo de trabajo | 0.01 |
| RMS real | Yes |
| Temperatura (tipo N) | ±1% + 4.5°F (2.5°C) |
| Tensión de prueba de aislamiento | 125V, 250V, 500V, 1000V |
| Voltaje CA | 1000V |
| Voltaje CC | 1000V |
| Detalles adicionales | |
|---|---|
| Alimentación | 6 × AA (1.5V) batteries |
| Categoría de seguridad | CATIV - 600V |
| Certificaciones | CE, FC, UL |
| Clasificación IP | IP67 |
| Dimensiones | 7.8 × 3.6 × 1.9" (200 × 92 × 50mm) |
| Garantía | 2 years |
| Peso | 20.5oz (582g) |
