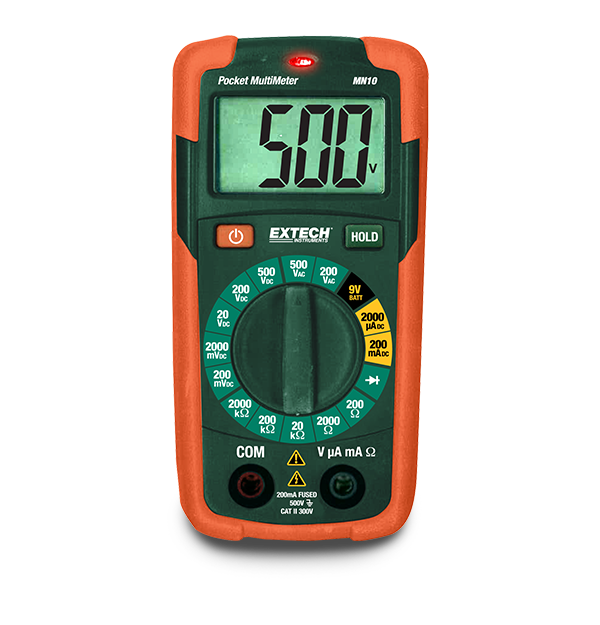

Extech MN10
Pocket MultiMeter + NCV
The Extech MN10 is an affordable, Pocket Multimeter that is fully loaded with functions such as a built in non-contact voltage (NCV) detector, AC/DC voltage, current, resistance, and a battery test. Its easy-to-use manual ranging design allows you to select the voltage, current, or resistance range you are testing. Perfect for students, DIYs, and entry level electricians.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Corriente CC | 200mA |
| Detector de tensión sin contacto (VSC) | 100 to 600VAC |
| Precisión básica de corriente CC | ±1.2% |
| Precisión básica de tensión CA | ±1.2% |
| Precisión básica de tensión CC | ±0.5% |
| Prueba de diodos | Yes |
| Prueba de pila | 9V |
| Resistencia | 2000kΩ |
| Resolución básica de tensión CC | 0.1mV |
| Resolución máx. de corriente CC | 1µA |
| Resolución máx. de resistencia | 0.1Ω |
| Resolución máx. de tensión CA | 0.1V |
| Voltaje CA | 500V |
| Voltaje CC | 500V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × A23 (12V) battery |
| Categoría de seguridad | CATII - 300V |
| Certificaciones | CE |
| Dimensiones | 4.3 × 2.1 × 1.3" (108 × 53 × 32mm) |
| Garantía | 1 year |
| Peso | 3.6oz (102g) |
Resources & Support
User Manual
Manual del usuário de Extech MN10
User Manual
Extech MN10 User Manual
Datasheet
Extech MN10 Datasheet
