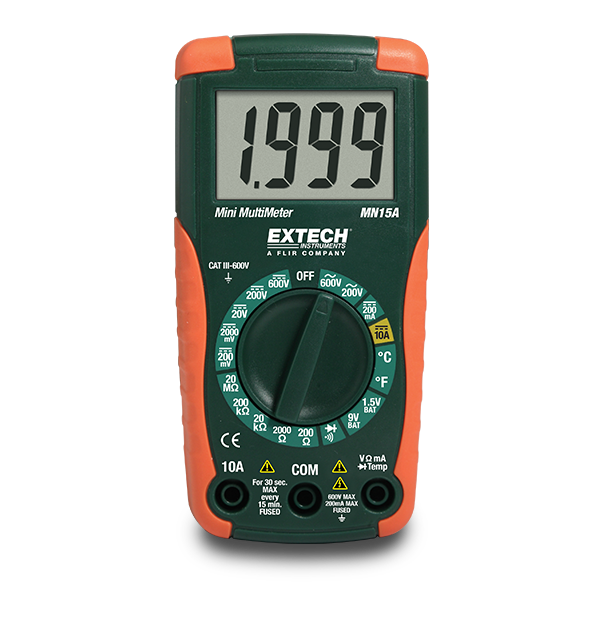

Extech MN15A
Digital Mini MultiMeter
Small on size and configured with vital functionality, the compact, manual-ranging Extech MN15A Digital Mini Multimeter is a popular choice for anyone who prefers a smaller meter they can carry in a pocket or tool belt. Handy for quick testing, use it to measure AC/DC voltage and DC current, as well resistance with functions for testing diodes and checking for continuity. Plus, the battery test function lets you quickly check the condition of 1.5 V and 9 V batteries. The MN15A comes with a built-in stand, 9 V battery, test leads, and a general purpose temperature probe.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Corriente CC | 10A |
| Precisión básica de corriente CC | ±1.2% |
| Precisión básica de temperatura (tipo N) | 0.1 ° |
| Precisión básica de tensión CA | ±1.2% |
| Precisión básica de tensión CC | ±0.5% |
| Prueba de pila | 9V & 1.5V Batteries |
| Resistencia | 20MΩ |
| Resolución básica de tensión CC | 0.1mV |
| Resolución máx. de corriente CC | 0.1mA |
| Resolución máx. de resistencia | 0.1Ω |
| Resolución máx. de temperatura (tipo K) | -4 to 1400°F (-20 to 750°C) |
| Resolución máx. de tensión CA | 0.1V |
| Temperatura (tipo N) | ±(3% of reading + 9°F/5°C) |
| Voltaje CA | 600V |
| Voltaje CC | 600V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIV - 600V |
| Certificaciones | CE, ETL |
| Dimensiones | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Garantía | 2 years |
| Peso | 5.4oz (153g) |
Resources & Support
User Manual
Manual del usuário de Extech MN15A
User Manual
Extech MN15A User Manual
Certification
Extech MN15A Declaration of Conformity
Datasheet
Extech MN15A-MN16A Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
