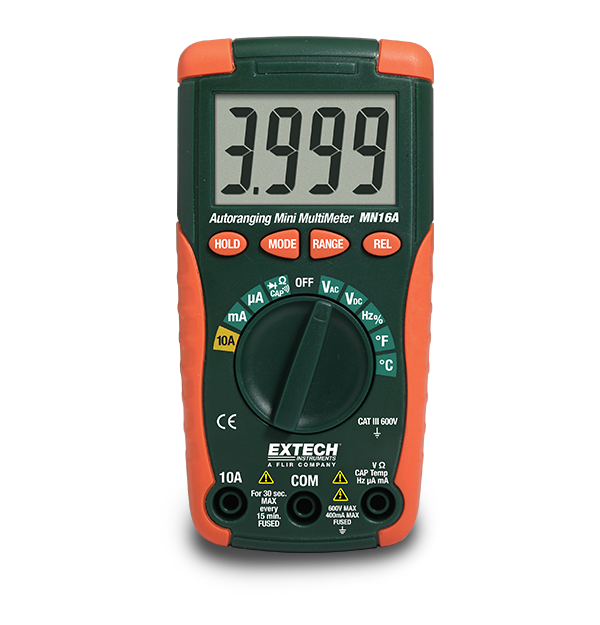

Extech MN16A
Digital Mini MultiMeter
The Extech MN16A is a Digital Mini Multimeter. It measures AC/DC voltage and current, resistance, capacitance, frequency, continuity, diode test, Type K temperature, and duty cycle. In addition, it has an auto power off with disable feature. Measurements are viewed on a large, easy to read LCD display. Product complete with two AAA batteries, general purpose Type K bead wire probe, and test leads.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Capacitancia | 100µF |
| Ciclo de trabajo | 0.1 to 99.9% |
| Corriente CA | 10A |
| Corriente CC | 10A |
| Frecuencia | 5MHz |
| Precisión básica de corriente CC | ±1.5% |
| Precisión básica de frecuencia | ±1.2% |
| Precisión básica de temperatura (tipo N) | 0.1 ° |
| Precisión básica de tensión CA | ±1.5% |
| Precisión básica de tensión CC | ±1.2% |
| Precisión básica del ciclo de trabajo | ±1.2% |
| Precisión de corriente CA básica | ±1.8% |
| Resistencia | 40MΩ |
| Resolución básica de tensión CC | 1mV |
| Resolución máx. de capacitancia | 0.01nF |
| Resolución máx. de corriente CA | 0.1µA |
| Resolución máx. de corriente CC | 0.1µA |
| Resolución máx. de frecuencia | 0.001Hz |
| Resolución máx. de resistencia | 0.1Ω |
| Resolución máx. de temperatura (tipo K) | -4 to 1400°F (-20 to 750°C) |
| Resolución máx. de tensión CA | 0.1mV |
| Temperatura (tipo N) | ±(3% of reading + 9°F/5°C) |
| Voltaje CA | 600V |
| Voltaje CC | 600V |
| Detalles adicionales | |
|---|---|
| Alimentación | 2 × AAA (1.5V) batteries |
| Categoría de seguridad | CATIV - 600V |
| Certificaciones | CE, ETL |
| Dimensiones | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Garantía | 2 years |
| Peso | 5.4oz (153g) |
Resources & Support
User Manual
Manual del usuário de Extech MN16A
User Manual
Extech MN16A User Manual
Certification
Extech MN16A Declaration of Conformity
Datasheet
Extech MN15A-MN16A Datasheet
