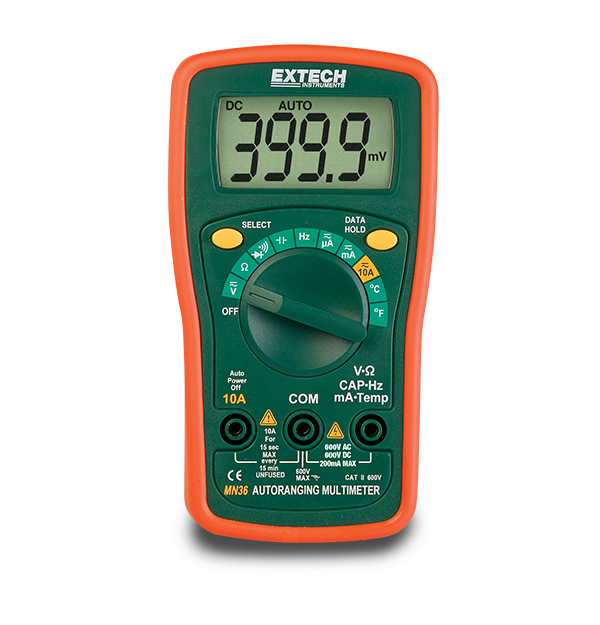

Extech MN36
Minimultímetro digital
El multímetro digital Extech MN36 es compacto pero aun así está repleto de funciones. Capaz de medir voltaje de CA y CC de hasta 600 voltios, el MN36 es de autorrango, lo que significa que muestra automáticamente las lecturas con la ubicación adecuada del lugar decimal y la resolución máxima. Viene con funda protectora de goma, 2 pilas AAA, cable tipo K, sonda de temperatura y cables de prueba.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| AC Current | 10 A |
| AC Current Basic Accuracy | ±1,5 % |
| AC Current Max Resolution | 0,1µ A |
| AC Voltage | 600 V |
| AC Voltage Basic Accuracy | ±1,2 % |
| AC Voltage Max Resolution | 0,1 V |
| Capacitance | 100µF |
| Capacitance Max Resolution | 0,001 nF |
| DC Current | 10 A |
| DC Current Basic Accuracy | ±1,2 % |
| DC Current Max Resolution | 0,1µ A |
| DC Voltage | 600 V |
| DC Voltage Basic Accuracy | ±0,5 % |
| DC Voltage Max Resolution | 0,1 mV |
| Frequency | 5 MHz |
| Frequency Basic Accuracy | ±1,0 % |
| Frequency Max Resolution | 0,01 Hz |
| Resistance | 40 MΩ |
| Resistance Max Resolution | 0,1µΩ |
| Temperature [Type K] Max Resolution | De -20 a 750°C (de -4 a 1400°F) |
| Temperature [Type N] | ±(1 % de lectura + 4°) |
| Temperature [Type N] Basic Accuracy | 1°°F/°°C |
| Detalles adicionales | |
|---|---|
| Certifications | CE |
| Dimensions | 138 × 72 × 38 mm (5,43 × 2,83 × 1,5") |
| Power | 2 pilas AAA (1,5 V) |
| Safety Category | CATII - 600 V |
| Warranty | 2 años |
| Weight | 153 g (5,4 oz) |
