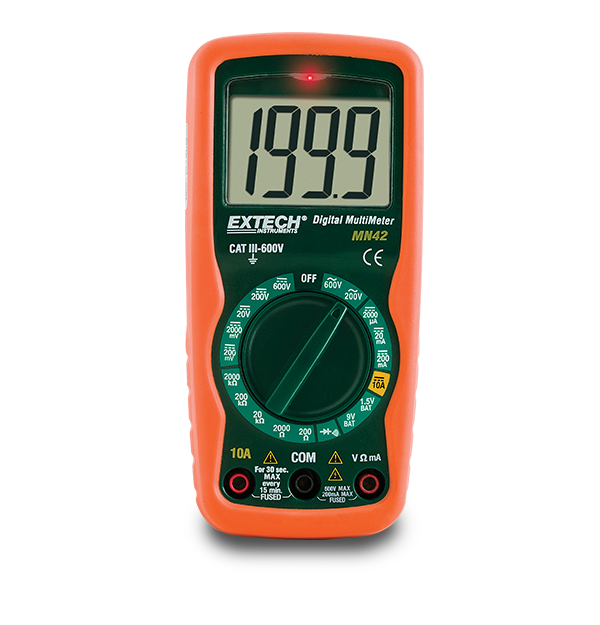

Extech MN42
8 Function Compact MultiMeter + NCV
The compact, manual-ranging Extech MN42 Compact Multimeter is equipped with capabilities a tradesman or technician can use every day, while also perfect for any hobbyist, hacker/maker, or DIYer working on home improvement and A/V projects. Also included is a built in, non contact voltage detector (from 100 VAC to 600 VAC). Freely measure AC/DC voltage, DC current, and resistance, as well as conduct continuity, diode, and battery test. Complete with test leads, 9 V battery, and carrying case.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Continuidad | Yes |
| Corriente CC | 10A |
| Detector de tensión sin contacto (VSC) | 100 to 600VAC |
| Prueba de diodos | Yes |
| Prueba de pila | 1.5V / 9V |
| Resistencia | 2MΩ |
| Resolución básica de tensión CC | 0.1mV |
| Resolución máx. de corriente CC | 1µA |
| Resolución máx. de resistencia | 0.1Ω |
| Resolución máx. de tensión CA | 0.1V |
| Voltaje CA | 600V |
| Voltaje CC | 600V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 600V |
| Certificaciones | CE |
| Dimensiones | 5.9 × 2.75 × 1.8" (150 × 70 × 48mm) |
| Garantía | 2 years |
| Pantalla | 2000-count segment LCD |
| Peso | 9oz (255g) |
Resources & Support
User Manual
Manual del usuário de Extech MN42
User Manual
Extech MN42 User Manual
Datasheet
Extech MN42-MN47 Datasheet
