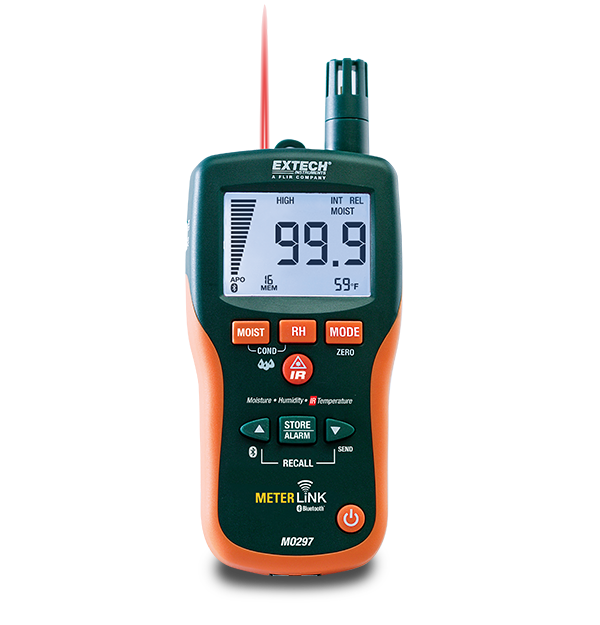

Extech MO297
Pinless Moisture Psychrometer with IR Thermometer and Bluetooth METERLiNK™
The Extech MO297 is an 8 in 1 Pinless Moisture Psychrometer with a built in infrared (IR) thermometer and Bluetooth MeterLink™ transmitter. It can wirelessly transmits moisture and humidity data to select FLIR thermal imaging IR cameras to incorporate meter readings with thermal images. The pinless moisture sensor allows users to measure moisture in various types of wood and building materials with virtually no surface damage. A remote pin-type probe can be used for contact moisture readings in hard to reach or hazardous areas. Complete with the pin probe cable, 9 V battery, and a case.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Bluetooth METERLiNK™ | Yes |
| Conectividad inalámbrica | Bluetooth |
| Contenido de humedad de WME (pin) | 0 to 99.9% |
| Contenido de humedad relativa (sin pin) | 0 to 99.9 |
| Emisividad | 0.95 fixed |
| Humedad relativa | 0 to 100% |
| Memoria | Manually store/recall 20 data readings |
| Precisión básica de humedad relativa | ±3% |
| Precisión básica de temperatura (aire) | ±3.6°F (2.0°C) |
| Precisión básica de temperatura (IR) | -4 to 392 °F (-20 to 200 °C) |
| Precisión básica del contenido de humedad de WME (pin) | ±5% |
| Presión de vapor | 0 to 20.0kPA |
| Profundidad de medición | up to 0.75" (19mm) |
| Punto de condensación | -22 to 199 °F (-30 to 100 °C) |
| Relación de distancia con objetivo | 8:1 |
| Resolución máx. de temperatura (aire) | 0.1°F/°C |
| Resolución máx. de temperatura (IR) | ±3.5% or ±9°F(4.5°C) whichever greater |
| Resolución máx. del contenido de humedad de WME (pin) | 0.1 |
| Resolución máx. del contenido de humedad relativa (sin pin) | 0.1 |
| Temperatura (aire) | -20 to 170 °F (-29 to 77 °C) |
| Temperatura (RTD) | 0.1°F/°C |
| Tipo de sensor | Replaceable threaded contact pins, non-penetrating electromagnetic sensor pad |
| Vapor de agua | 0 to 999gpp (0 to 160g/kg) |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Certificaciones | CE |
| Dimensiones | 6.5 × 2.8 × 1.5" (165 × 70 × 38) |
| Garantía | 2 years |
| Peso | 7.4oz (210g) |
Resources & Support
User Manual
Manual del usuário de Extech MO297
User Manual
Extech MO297 User Manual
Datasheet
Extech MO297 Datasheet
Certification
Extech MO297 Declaration of Conformity
