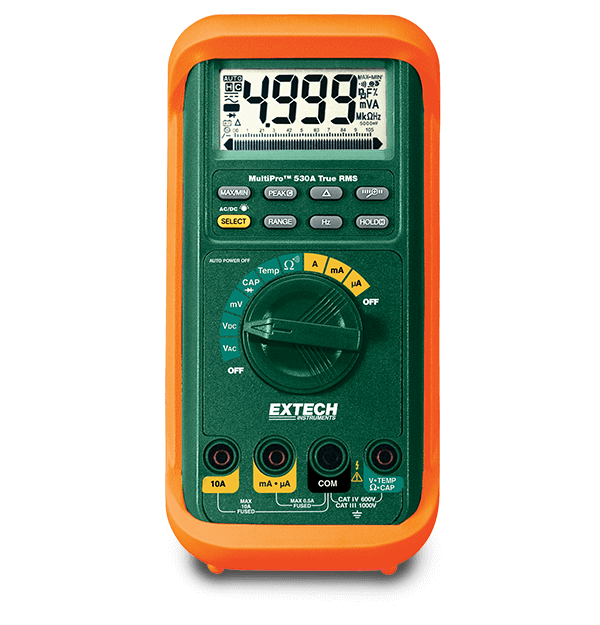

Extech MP530A
MultiPro® High-Performance MultiMeter
The Extech MP530A is a 5000 count, True RMS auto ranging Multimeter that measures AC/DC voltage and current, resistance, temperature, capacitance, and frequency with a 0.08% basic accuracy. Additional features include diode test, continuity check, auto power off, data hold, and low resistance auto lead zero, all on an easy to read, backlit display. Includes protective holster with built-in stand, test leads, Type K bead temperature probe, and 9 V battery.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Capacitancia | 50nF ,500nF, 5µF, 50µF, 500µF, 9999µF |
| Corriente CA | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Corriente CC | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Frecuencia | 5Hz to 125kHz |
| Precisión básica de corriente CC | ±(0.2% of reading + 4 digits) |
| Precisión básica de frecuencia | ±(0.01% of reading + 2 digits) |
| Precisión básica de temperatura (tipo N) | 1 °F/ °C |
| Precisión básica de tensión CA | ±(0.8% of reading + 3 digits) |
| Precisión básica de tensión CC | ±(0.08% of reading + 2 digits) |
| Precisión de corriente CA básica | ±(0.8% of reading + 4 digits) |
| Resistencia | 50Ω, 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ |
| Resolución básica de tensión CC | 0.01mV |
| Resolución máx. de capacitancia | 0.01nF |
| Resolución máx. de corriente CA | 0.1µA |
| Resolución máx. de corriente CC | 0.1µA |
| Resolución máx. de frecuencia | 0.001Hz |
| Resolución máx. de resistencia | 0.01Ω |
| Resolución máx. de temperatura (tipo K) | -58 to 1832 °F (-50 to 1000 °C ) |
| Resolución máx. de tensión CA | 0.01mV |
| RMS real | Yes |
| Temperatura (tipo N) | ±(0.3% of reading + 3 digits) |
| Voltaje CA | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| Voltaje CC | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIV - 600V |
| Certificaciones | CE, UL |
| Dimensiones | 7.32 × 3.42 × 1.39" (186 × 87 × 35.5mm) |
| Garantía | 2 years |
| Peso | 0.75lb (340g) |
