Discontinued

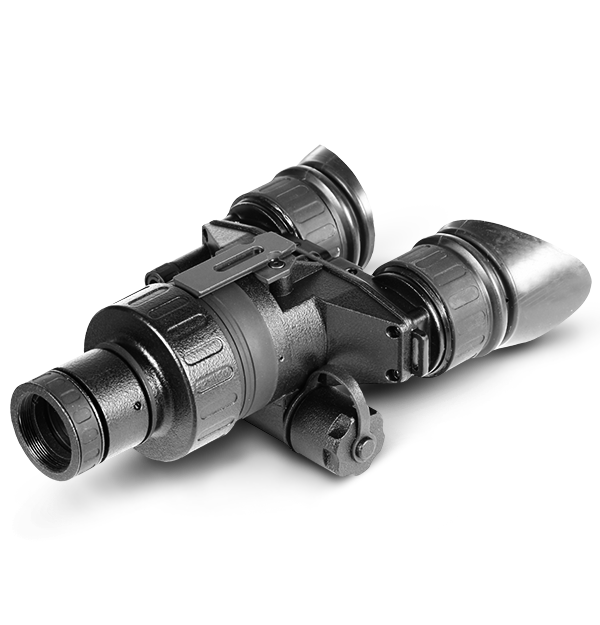

Nyx-7
Night Vision Goggles
The FLIR Nyx-7 bi-ocular goggle system offers clear and bright night vision in minimal light conditions. High-grade optics, intuitive electronics, and Gen 2+ image intensifier tubes offer reliable vision while head or helmet mounting options allow exceptional hands-free use. Available 3x or 5x magnification lenses and attachable high-powered IR illuminator add mid- to long-range viewing capability.
Reliable Vision in a Customizable System
Built-in IR illuminator and ruggedized weather-resistant housing maintain imaging performance in difficult conditions
Head and helmet mounting options, external illuminator, and available magnified lenses enhance user-customization.
Automatic brightness control and 60-hour battery life offer reliable and long-lasting night vision.
Especificaciones
| Sensor y óptica | |
|---|---|
| Ajuste de dioptría | ±5 diopter |
| Alivio ocular (mm) | 16 mm |
| Aumento | 1x standard (3x, 5x optional) |
| Campo de visión | 40° |
| Control de brillo automático | Yes |
| Corte_de luz brillante | Yes |
| Diámetro de pupila de salida (mm) | 14 mm |
| Generación de IIT | Gen 2+ SD (Standard Definition) |
| Iluminador de infrarrojos | Yes |
| Rango de enfoque | 0.25 m to Infinity |
| Resolución | 45-51 lp/mm |
| Sistema de lente | F/1.2; 24 mm |
| Tipo de fotocátodo | Multi-Alkali |
| Características medioambientales y aprobaciones | |
|---|---|
| Temperatura de almacenamiento | -50°C to +70°C (-58°F to +158°F) |
| Temperatura operativa | -40°C to +50°C (-40°F to +122°F) |
| Alimentación | |
|---|---|
| Apagado automático | Yes |
| Duración de la batería | Up to 60 hours |
| Fuente de alimentación | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Indicador de baja carga de la pila | Yes (In FOV) |
| Almacenamiento de archivos y comunicación | |
|---|---|
| Control remoto | - |
| UI-UX | |
|---|---|
| Color de retícula | - |
| Control de ganancia manual | No |
| Indicador de IR | Yes (In FOV) |
| Descripción general del sistema | |
|---|---|
| Ajuste de la elevación_y corrección del viento | - |
| Altura del eje de óptica sobre el raíl | - |
| Garantía | 2 Years |
| Tipo de retícula | - |
| Características físicas | |
|---|---|
| Dimensiones (L × An × Al) | 150 × 102 × 70 mm (5.9 × 4 × 2.8 in) |
| Montaje en trípode | - |
| Peso del producto | 0.45 kg (0.9 lbs) |
| Accesorios | |
|---|---|
| Accesorios incluidos | One Lithium Battery CR123A, Soft carrying Case, Instruction Manual with Warranty Card, Goggle Kit #2, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue, Packing Box |
| Accesorios opcionales | ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #37 , MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #37, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Lens Kit: Lens #22 with Adapter #23, Helmet Mount #183 (Shroud), Adapter #59, 5x Afocal Lens with Adapter #23, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Mil-Standard Hard Shipping/Storage Case #101, Helmet Mount #4 |
