Discontinued

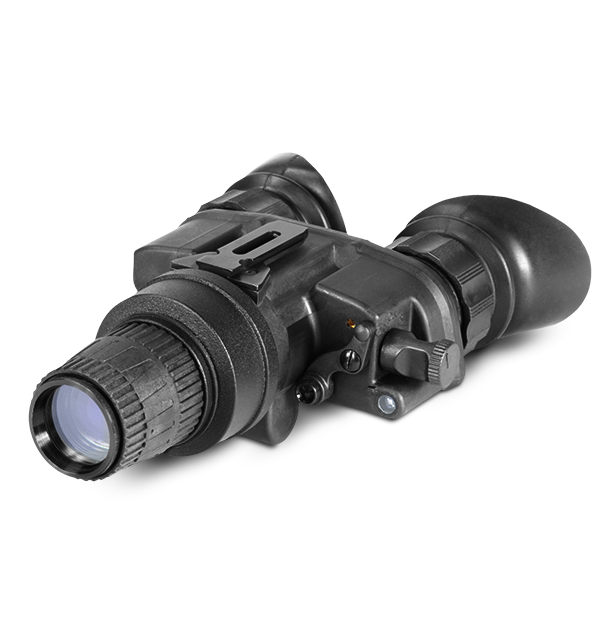

FLIR Nyx-7 Pro
Night Vision Goggles
The FLIR Nyx-7 Pro is an extremely rugged, compact bi-ocular night vision goggle system. High-grade optics and automatic brightness control provide clear nighttime images under the most trying conditions. Included flip-up head mount or optional universal helmet mount allow simple hands-free use while available 3x and 5x magnified lenses convert the Nyx-7 Pro to a long-range optic.
Exceptional Vision, Versatile Range Performance
Manual gain control knob and built-in IR illuminator amplify vision in tough weather and lighting conditions.
Available 3x and 5x magnified optical lenses convert head or helmet mounted goggles into a powerful long-range viewer.
Easy-to-operate controls, tough composite housing, and 60-hour battery life stand up to harsh conditions.
Especificaciones
| Sensor y óptica | |
|---|---|
| Ajuste de dioptría | -6 to +2 dpt |
| Alivio ocular (mm) | 15 mm |
| Aumento | 1x standard (3x, 5x optional) |
| Campo de visión | 40° |
| Control de brillo automático | Yes |
| Corte_de luz brillante | Yes |
| Diámetro de pupila de salida (mm) | 15 mm |
| Generación de IIT | Gen 2+ QS ("Quick Silver" White Phosphor) |
| Iluminador de infrarrojos | Yes (built-in with pivotal flood lens) |
| Rango de enfoque | 0.25 m to Infinity |
| Resolución | 47-54 lp/mm |
| Sistema de lente | F/1.2; 27 mm |
| Tipo de fotocátodo | Multi-Alkali |
| Características medioambientales y aprobaciones | |
|---|---|
| Temperatura de almacenamiento | -50°C to +70°C (-58°F to +158°F) |
| Temperatura operativa | -40°C to +50°C (-40°F to +122°F) |
| Alimentación | |
|---|---|
| Apagado automático | Yes |
| Duración de la batería | Up to 60 hours |
| Fuente de alimentación | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Indicador de baja carga de la pila | Yes (In FOV) |
| Almacenamiento de archivos y comunicación | |
|---|---|
| Control remoto | - |
| UI-UX | |
|---|---|
| Color de retícula | - |
| Control de ganancia manual | No |
| Indicador de IR | Yes (In FOV) |
| Descripción general del sistema | |
|---|---|
| Ajuste de la elevación_y corrección del viento | - |
| Altura del eje de óptica sobre el raíl | - |
| Garantía | 2 Years |
| Tipo de retícula | - |
| Características físicas | |
|---|---|
| Dimensiones (L × An × Al) | 204 × 127 × 61 mm (8.0 × 5.0 × 2.4 in) |
| Montaje en trípode | - |
| Peso del producto | 0.49 kg (1.0 lbs) |
| Accesorios | |
|---|---|
| Accesorios incluidos | Packing Box, Instruction Manual with Warranty Card, Soft carrying Case, Battery, ARFS4 - Advanced Range Finding Stadia for 4x Lens, Battery adapter CR123A 3V / AA 1.5V, Lens Tissue, Goggle Kit #2 |
| Accesorios opcionales | ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, XLR-IR Afocal Doubler - Doubles the distance of XLR-IR850 IR beam, 3x Afocal Lens #22, 5x Afocal Lens, MICH Helmet Mount Assembly USA #107 with Adapter/Swing Arm #59, Helmet Mount #183 (Shroud), Adapter #59, PASGT Helmet Mount Assembly USA #108 with Adapter/Swing Arm #59, XLR-IR850 Detachable X-Long Range Infrared Illuminator w/Dovetail to Weaver Transfer Piece #21, Helmet Mount #4, Mil-Standard Hard Shipping/Storage Case #101 |
