Discontinued

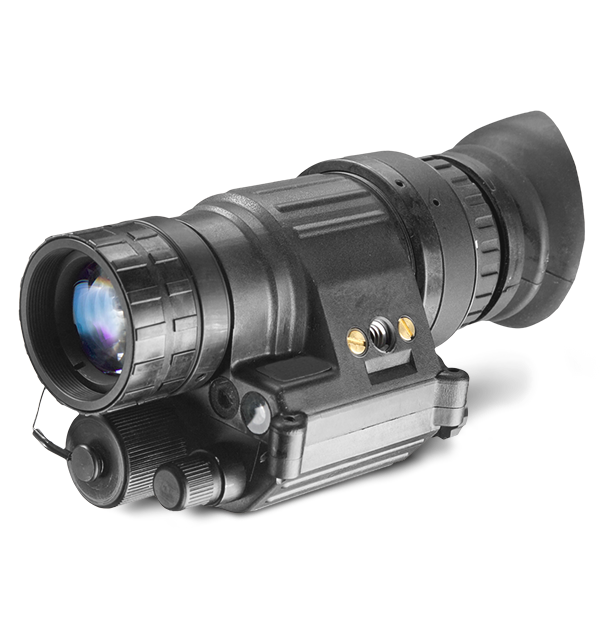

FLIR PVS-14-51
51° Night Vision Monocular
The FLIR PVS-14-51 single-tube night vision system brings a wide 51-degree field of view to the tough, military-trusted AN/PVS-14 housing. Head and helmet mounting promote hands-free operation while a maximized field of view enhances awareness and minimizes necessary movement. Built-in IR illuminator allows clear, covert vision in complete darkness.
Wide-Angle Advantage Meets Battle-Tested Design
51-degree lens provides a 28% increase in scene size over comparable 40-degree models.
Compact AN/PVS-14 housing is a trusted, longstanding night vision favorite of US military and law enforcement professionals.
Maintain a tactical advantage in the toughest lighting conditions with built-in IR illuminator and manual gain control.
Especificaciones
| Highlighted | |
|---|---|
| Temperatura operativa | -40°C to +50°C (-40°F to +122°F) |
| Sensor y óptica | |
|---|---|
| Ajuste de dioptría | -6 to +4 dpt |
| Alivio ocular (mm) | - |
| Aumento | 1x standard (3x, 5x optional) |
| Campo de visión | 51° |
| Control de brillo automático | No |
| Corte_de luz brillante | Yes |
| Diámetro de pupila de salida (mm) | - |
| Generación de IIT | Gen 3 High Performance IIT PINNACLE MG |
| Iluminador de infrarrojos | Yes (built-in with pivotal flood lens) |
| Rango de enfoque | 0.25 m to Infinity |
| Resolución | - |
| Sistema de lente | F/1.26; 19mm |
| Tipo de fotocátodo | GaAs |
| Características medioambientales y aprobaciones | |
|---|---|
| Temperatura de almacenamiento | -50°C to +50°C (-58°F to +122°F) |
| Temperatura operativa | -40°C to +50°C (-40°F to +122°F) |
| Alimentación | |
|---|---|
| Apagado automático | Yes |
| Duración de la batería | Up to 50 hours |
| Fuente de alimentación | One AA battery |
| Indicador de baja carga de la pila | Yes (In FOV) |
| Almacenamiento de archivos y comunicación | |
|---|---|
| Control remoto | - |
| UI-UX | |
|---|---|
| Color de retícula | - |
| Control de ganancia manual | Yes |
| Indicador de IR | Yes (In FOV) |
| Descripción general del sistema | |
|---|---|
| Ajuste de la elevación_y corrección del viento | - |
| Altura del eje de óptica sobre el raíl | - |
| Garantía | 2 Years |
| Tipo de retícula | - |
| Características físicas | |
|---|---|
| Dimensiones (L × An × Al) | 158 × 51 × 60 mm (6.2 × 2.0 × 2.4 in) |
| Montaje en trípode | - |
| Peso del producto | 0.32 kg (0.7 lbs) |
| Accesorios | |
|---|---|
| Accesorios incluidos | Packing Box, Soft Carrying Case, Lens Tissue, Instruction Manual with Warranty Card, Day Light Filter, Sacrificial Window, Demist Shields, Shoulder Strap, Tethering Cord, Helmet/Head Mount Adapter, Head Mount Assembly, Brow Pads |
| Accesorios opcionales | MICH Helmet Mount Assembly USA #107 (PVS-7, PVS-14), PASGT Helmet Mount Assembly USA #108 (PVS-7, PVS-14), Weapons Mount #109 (PVS14/6015), Extended Rail Adapter #85, ARFS3 - Advanced Range Finding Stadia for 3x Afocal Lens, ARFS5 - Advanced Range Finding Stadia for 5x Afocal Lens, 3x Afocal Magnifier Lens #99, 5x Afocal Magnifier Lens #100, 3x Afocal Lens #22 with Adapter #24/#25 (PVS-7, PVS-14), 5x Afocal Lens with Adapter #24/#25 (PVS-7, PVS-14), IR850XLR Afocal Doubler, IR850-XLR Detachable LED Extra Long Range Infrared Illuminator, Mil-Standard Hard Shipping/Storage Case #101 |
