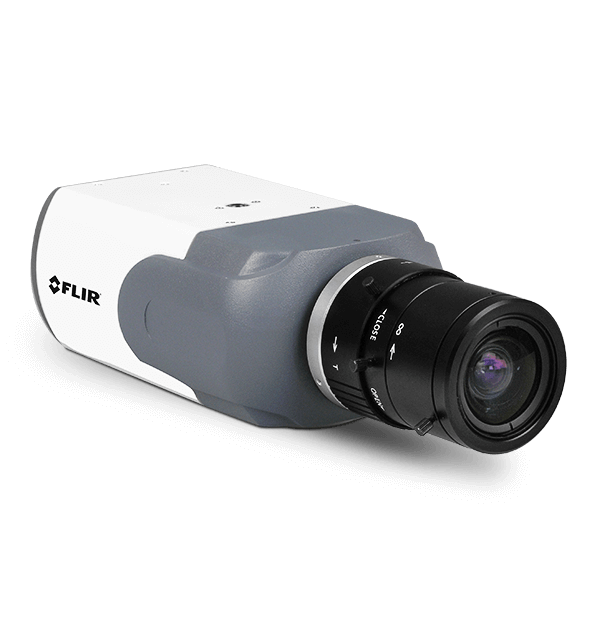

Quasar 1080p Fixed
Highest Quality. Lowest Bandwidth. Predictable Storage.
Quasar’s high performance broadcast video quality in an HD 1080p fixed camera guarantees frame rates in high motion, complex and low-light scenes found in city surveillance applications, airports, terminals, critical infrastructure sites, campuses and commercial installations.
Especificaciones
| Ciberseguridad | |
|---|---|
| Seguridad | User account and password protection |
| General | |
|---|---|
| Actualizar firmware | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| AES | 1.0 to 1 / 10,000 (auto) |
| Detección de manipulación | On / Off |
| Modo de día/noche | Smart IR / auto / on / off |
| Modo de escaneo | Progressive |
| Reducción de ruido 3D | On / Off - 6 levels |
| Zonas de privacidad | On / Off - 5 zones |
| Medición y análisis | |
|---|---|
| Control de ganancia automático | Auto |
| Integración de sistema | |
|---|---|
| Audio bidireccional | Full duplex, line / mic in and line out, G.711, G.726 |
| Conexiones de audio | 3.5 mm audio jacks |
| Configuración | Remote: via web access or supported video management software |
| Ethernet | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| Protocolo de red | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| Cámara de luz visible (Set: 155) | |
|---|---|
| Balance de blancos | Auto / indoor / outdoor |
| Compresión de retroiluminación | On / Off |
| Control de iris | DC auto |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Filtro de corte IR mecánico | Yes |
| Rango dinámico amplio | On / Off - 3 levels |
| Relación de señal y ruido | ≥50 dB |
| Resolución del sensor | 1920 x 1080 |
| Sensibilidad | Color: 0.1 Lux @ f1.4 / Night Mode: 0.03 Lux @ F1.4 at 30 IRE |
| Sensor de imagen | 1/2.7" HD 1080 CMOS |
| Vídeo y grabación | |
|---|---|
| Ancho de banda de vídeo | Configurable between 64Kbps and 8Mbps |
| Compresión de vídeo | Fully compliant multi-stream H.264 main profile + MJPEG |
| Control de frecuencia | CBR/VBR |
| Detección de movimiento en vídeo | On / Off - 10 zones |
| Grabación en tarjeta SD | SDHC up to 32GByte |
| Rango de resolución | Scalable from CIF to HD1080 (1920x1080) |
| Rendimiento máximo | H.264 30/25 FPS @ HD1080 + 30/25 FPS @ D1 or 30+30 / 25+25 @ HD720 |
Recursos y asistencia
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Quasar Gen 1 - 20161103
Software Download
FLIR DNA Software - Version 2.3.0.35
Firmware Release Note
FLIR Quasar Gen I Firmware Release Notes Version dt20161103NSA
User Manual
FLIR Cyber Hardening Guide
Tech Note
FLIR Best Practices Guide for Perimeter Security Applications
Export Restrictions
