Discontinued

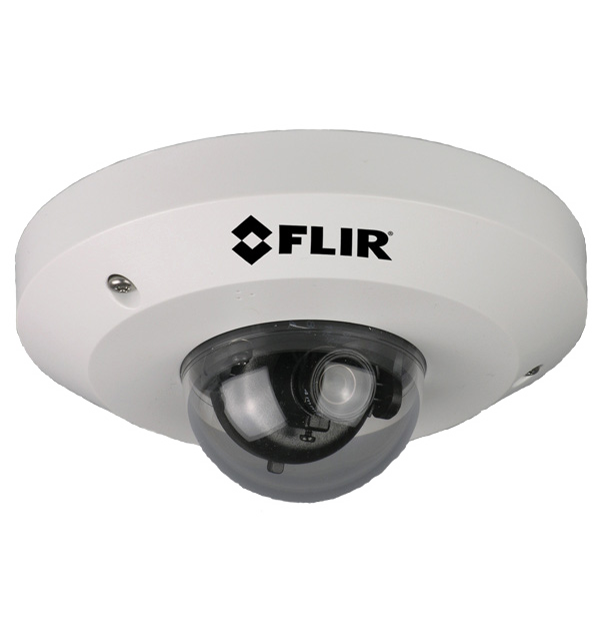

Quasar 1080p Low Profile
Especificaciones
| Conformidad y certificaciones | |
|---|---|
| EE. UU. | UL FCC Part 15 (subpart B, class A) |
| Internacional | CE marked, EN55022-1998 class A, EN55024, RoHS |
| Ciberseguridad | |
|---|---|
| Seguridad | User account and password protection |
| Características medioambientales | |
|---|---|
| Humedad | 95% (non–condensing) |
| Temperatura de almacenamiento | –20° to 70° C (–4° to 158° F) |
| Temperatura operativa | 0° to 50° C (32° to 122° F) |
| General | |
|---|---|
| Actualizar firmware | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| AES | 1.0 to 1 / 10,000 (auto) |
| Alimentación | 802.3af PoE |
| Compresión | Fully compliant multi–stream H.264 main profile + MJPEG |
| Conexión de alimentación | PoE |
| Consumo de energía | 3.5W |
| Detección de manipulación | On / Of |
| Dimensiones | Indoor: 110.2 x 47.7 mm (4.3 x 1.9 in.) |
| Garantía | According to DVTEL RMA Policy and Process Notice document |
| Modo de escaneo | Progressive |
| Modo de noche | Digital night mode |
| Parada F de burbuja | F0.0 - clear bubble |
| Peso de la unidad | 180 g (0.40 lbs.) |
| Reducción de ruido 3D | On / Off – 6 levels |
| Zonas de privacidad | On / Off – 5 zones – 8 colors |
| PTZ | |
|---|---|
| Panorámica/inclinación | 160° Pan / 90° Tilt |
| Integración de sistema | |
|---|---|
| Configuración | Remote: via web access or supported video management software |
| Ethernet | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| Navegador web compatible | Internet Explorer 6.0+ |
| Protocolo de red | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP,HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF Profile S, IEEE 802.1X |
| Cámara de luz visible (Set: 155) | |
|---|---|
| Ancho de banda | Configurable between 64Kbps and 8Mbps |
| DSS | 1.0 to 1 / 10,000 with up to 32x sensitivity boost in color or night mode |
| Filtro de IR mecánico | No |
| Relación de señal y ruido | ±50 dB |
| Resolución del sensor | 2.1MP 1920x1080 |
| Sensibilidad | 0.5 (color) measured with DSS OFF at 30 IRE |
| Sensor de imagen | 1/2.7" HD 1080 CMOS |
| Tipo de lente | 4mm F1.5 / 78° HFOV 2.8mm F2.0 / 110° HFOV |
| WDR | On / Off – 3 levels |
| Vídeo y grabación | |
|---|---|
| Control de frecuencia | CBR/VBR |
| Detección de movimiento en vídeo | Up to 10 independent zones |
| Grabación en tarjeta SD | SDHC/SDXC up to 32GByte |
| Rango de resolución | Scalable from CIF to HD 1080p |
| Rendimiento máximo | 30fps@HD1080p + 30fps@D1 or 15+15@HD1080p |
