Discontinued

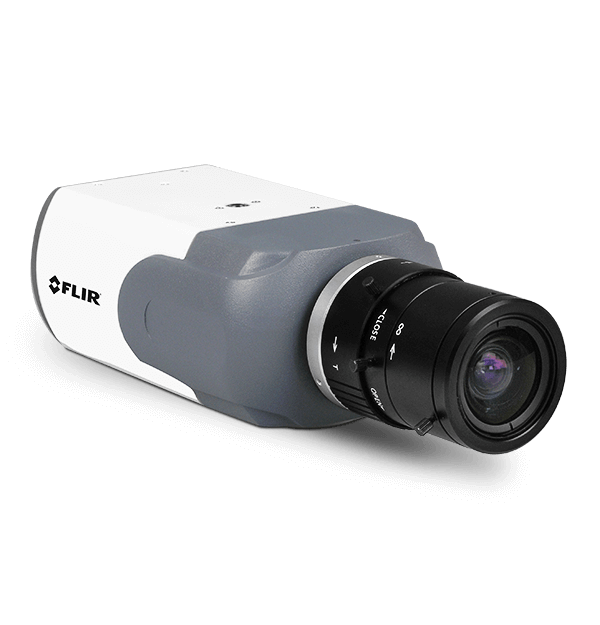

Quasar 5MP Fixed
Highest Quality. Lowest Bandwidth. Predictable Storage.
The Quasar CF-4251 series of HD 1440p / 5MP cameras is a best in class broadcast video quality camera that guarantees frame rates in high motion, complex and low light scenes, at the lowest bit rates.
Especificaciones
| Conformidad y certificaciones | |
|---|---|
| EE. UU. | UL, FCC Part 15 (subpart B, class A) |
| Internacional | CE marked, EN55022-1998 class A, EN55024 |
| Ciberseguridad | |
|---|---|
| Seguridad | User account and password protection |
| Características medioambientales | |
|---|---|
| Humedad | 95% (non-condensing) |
| Temperatura de almacenamiento | -20° to 70° C (-4° to 158° F) |
| Temperatura operativa | Indoor: 0° to 50° C (32° to 122° F) Outdoor installation requires optional environmental housing (-30° to 50° C when used with CF-X200-01) |
| General | |
|---|---|
| Actualizar firmware | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM |
| AES | 1.0 to 1 / 10,000 (auto) |
| Carcasa | Metal case with 1/4 in. UNC-20 screw mounts on top and bottom |
| Conexión de alimentación | 12 VDC / 24 VAC terminal block |
| Consumo de energía | 6W |
| Detección de manipulación | On / Of |
| Dimensiones | 115 L x 82 W x 52 H mm (without lens) |
| Garantía | According to DVTEL RMA Policy and Process Notice document |
| Modo de día/noche | Smart IR / auto / on/of |
| Modo de escaneo | Progressive |
| Peso de la unidad | 398 g (14 oz.) |
| Reducción de ruido 3D | On / Off - 6 levels |
| Voltaje de entrada | 12 VDC / 24 VAC ±10% or 802.3af PoE |
| Zonas de privacidad | On / Off - 5 zones |
| Medición y análisis | |
|---|---|
| Control de ganancia automático | Auto |
| Integración de sistema | |
|---|---|
| Audio bidireccional | Full duplex, line / mic in and line out, G.711, G.726 |
| Conexiones de audio | 3.5 mm audio jacks |
| Configuración | Remote: via web access or supported video management software |
| Entrada de alarma | 1 dry alarm contact |
| Ethernet | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| Navegador web compatible | Internet Explorer 8+ |
| Protocolo de red | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| Salida de alarma | 1 relay contact, 60V AC / DC at 130 mA maximum |
| Cámara de luz visible (Set: 155) | |
|---|---|
| Balance de blancos | Auto / indoor / outdoor |
| Compresión de retroiluminación | On / Of |
| Control de iris | DC auto |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Filtro de corte IR mecánico | Yes |
| Rango dinámico amplio | On / Off - 3 levels |
| Relación de señal y ruido | ≥50 dB |
| Resolución del sensor | 2592 x 1944 |
| Sensibilidad | Color: 0.1 Lux @ f1.4 / Night Mode: 0.03 Lux @ F1.4 at 30 IRE |
| Sensor de imagen | 1/2.5" CMOS |
| Vídeo y grabación | |
|---|---|
| Ancho de banda de vídeo | Configurable between 64Kbps and 8Mbps |
| Compresión de vídeo | Fully compliant multi-stream H.264 main profile + MJPEG |
| Control de frecuencia | CBR/VBR |
| Detección de movimiento en vídeo | On / Off - 10 zones |
| Grabación en tarjeta SD | SDHC up to 64GB |
| Rango de resolución | Scalable from CIF to HD 1440p / 5MP |
| Rendimiento máximo | H.264 15/12 FPS @ HD 1440p (NTSC/PAL) or H.264 12/12 FPS @ 5MP (NTSC/PAL) |
