Discontinued

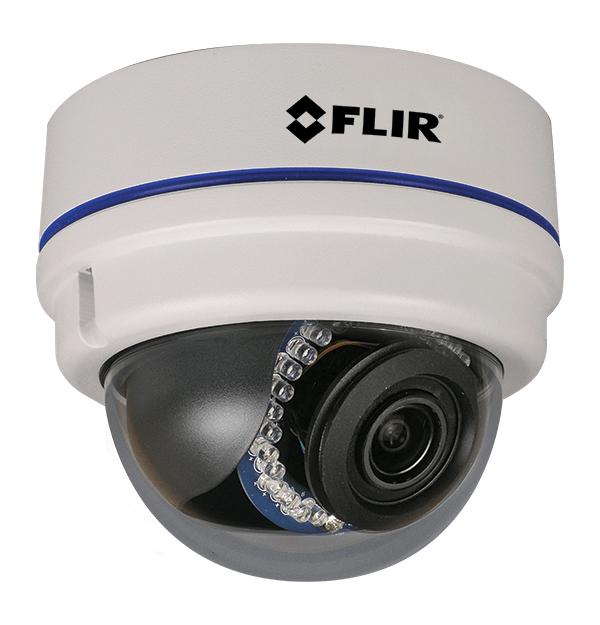

Quasar 5MP Mini-Dome
Especificaciones
| Conformidad y certificaciones | |
|---|---|
| EE. UU. | UL, FCC Part 15 (subpart B, class A) |
| Internacional | l CE marked, EN55022-1998 class A, EN55024, RoHS |
| Ciberseguridad | |
|---|---|
| Seguridad | User account and password protection |
| Características medioambientales | |
|---|---|
| Humedad | 95% (non–condensing) |
| Temperatura de almacenamiento | –20° to 70° C (–4° to 158° F) |
| Temperatura operativa | Indoor: 0° to 50° C (32° to 122° F) Outdoor: –30° to 50° C (–22° to 122° F) |
| General | |
|---|---|
| Actualizar firmware | Flash memory for upgrade of camera firmware over the network (1GB Flash / 2GB RAM) |
| AES | 1.0 to 1 / 10,000 (auto) |
| Carcasa | Indoor: Tamper resistant surface mount plastic case or Indoor/Outdoor: IK10 rated vandal IP66 |
| Clasificación de la burbuja | IK10 vandal resistant polycarbonate |
| Compresión | Fully compliant multi-stream H.264 main profile + MJPEG |
| Conexión de alimentación | AC / DC terminal block or PoE |
| Consumo de energía | 6W indoor or 13W outdoors with heater / fan / IR |
| Detección de manipulación | On / Off |
| Dimensiones | Indoor / Outdoor: 151 x 130 mm (5.9 x 5.1 in.) |
| Garantía | According to DVTEL RMA Policy and Process Notice documen |
| Modo de día/noche | Smart IR / auto / on/off |
| Modo de escaneo | Progressive |
| Parada F de burbuja | F0.0 - clear bubble / F1.0 - smoke bubble (option) |
| Peso de la unidad | Indoor: 0.8 Kg (1.8 lbs.) Outdoor: 1.3 Kg (2.9 lbs.) |
| Reducción de ruido 3D | On / Off – 6 levels |
| Voltaje de entrada | 12 VDC / 24 VAC ±10% or 802.3af PoE |
| Zonas de privacidad | On / Off – 5 zones |
| Medición y análisis | |
|---|---|
| Control de ganancia automático | Auto |
| PTZ | |
|---|---|
| Rotación de panorámica/inclinación | 350, 350 and ±90° |
| Integración de sistema | |
|---|---|
| Audio bidireccional | Full duplex, line / mic in and line out, G.711, G.726 |
| Conexiones de audio | Terminal block |
| Configuración | Remote: via web access or supported video management software |
| Distancia | 15 m (50 ft.) |
| Entrada | 1 dry alarm contact |
| Ethernet | 10 / 100 Base-T auto sensing, half / full duplex (RJ45) |
| Longitud de onda de emisión de pico [nm] | 850 |
| Navegador web compatible | Internet Explorer 8+ |
| Número de LED IR | 24 |
| Protocolo de red | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| Salida | 1 relay contact, 60V AC / DC at 130 mA maximum |
| Ángulo de iluminación | Full 90° |
| Cámara de luz visible (Set: 155) | |
|---|---|
| Ancho de banda | Configurable between 64Kbps and 8Mbps |
| Balance de blancos | Auto / indoor / outdoor |
| Compensación de retroiluminación | On / Off |
| Control de iris | DC auto |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Filtro de corte IR mecánico | Yes |
| Relación de señal y ruido | ±50 dB |
| Resolución del sensor | 5MP 2592x1944 |
| Sensibilidad | 0.3 (color)/0.04 (BW), 0 Lux with IR illuminator ON, measured with DSS OFF at 30 IRE |
| Sensor de imagen | 1/2.5" CMOS |
| Tipo de lente | Varifocal: 3-9 mm F1.2 Auto Iris D/N Horizontal viewing angle: 40° to 110° Motorized with auto–focus |
| WDR | On / Off – 3 levels |
| Vídeo y grabación | |
|---|---|
| Control de frecuencia | CBR/VBR |
| Detección de movimiento en vídeo | Up to 10 independent zones |
| Grabación en tarjeta SD | SDHC up to 64GB |
| Rango de resolución | Scalable from CIF to HD 1440p/5MP |
| Rendimiento máximo | H.264 30/25 FPS @ HD 1080 + 30/25 FPS @ D1 or 30+30 / 25+25 @ HD720 |
