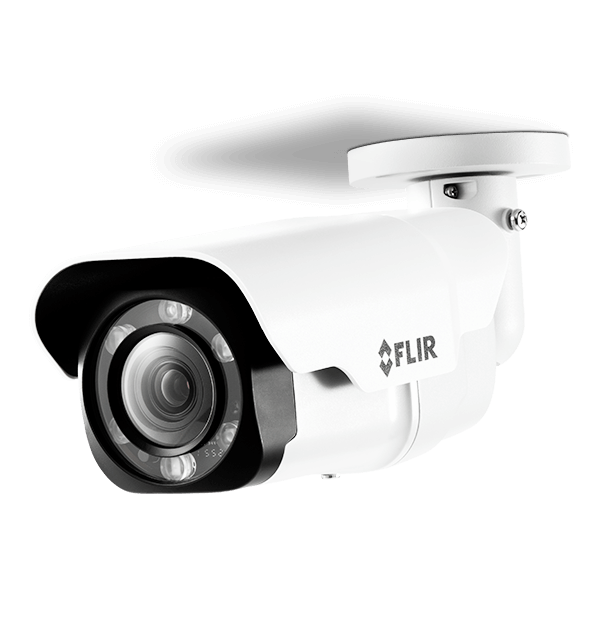

Quasar Quad HD Bullet
Quad HD Bullet
The Quasar Quad HD Bullet camera brings together the most advanced technologies for best-in-class broadcast quality. With Quad HD resolution and multi-shutter WDR, the Quasar Quad HD sWDR camera represents a breakthrough in resolution performance.These models offer 76 percent more detail than HD1080, with the same forensic zoom as legacy 5MP cameras. The Quad HD sWDR camera also delivers predictable storage, lower utility costs, and reducedTotal Cost of Ownership (TCO).
Especificaciones
| Conformidad y certificaciones | |
|---|---|
| EE. UU. | FCC 47 CFR Part 15, Subpart B, Class A; UL 60950 |
| Internacional | CE (EN55022-1998 Class A; EN50130-4; EN60950; RoHS) |
| Ciberseguridad | |
|---|---|
| Seguridad | User account with password protection and IP filter |
| Características medioambientales | |
|---|---|
| Humedad | 95% (non-condensing) |
| Temperatura de almacenamiento | -20° to 70° C (-4° to 158° F) |
| Temperatura operativa 3 | -40° to 50° C (-40° to 122° F) |
| General | |
|---|---|
| Actualizar firmware | Flash memory for upgrade of camera firmware over the network (1GB Flash / 8GB RAM) |
| AES | 1.0 to 1 / 10,000 (auto) |
| Carcasa | Indoor/Outdoor: IK10 rated vandal IP66 |
| Conexión de alimentación | AC / DC terminal block or PoE |
| Consumo de energía | 6W indoor or 13W outdoors with heater / IR |
| Detección de manipulación | On / Off / schedule |
| Dimensiones | 218 x 99 mm (8.59 x 3.89 in.) |
| Garantía | According to FLIR RMA Policy and Process Notice |
| Modo de día/noche | Smart / Auto / On / Off |
| Modo de escaneo | Progressive |
| Peso de la unidad | 0.98 Kg (2.16 lbs.) |
| Voltaje de entrada | 12 VDC / 24 VAC ±10% or 802.3af PoE (Class 0) |
| Zonas de privacidad | On / Off - 5 zones |
| Medición y análisis | |
|---|---|
| Control de ganancia automático | Auto |
| PTZ | |
|---|---|
| Rotación de panorámica/inclinación | 360, ±90° and 360 |
| Integración de sistema | |
|---|---|
| Audio bidireccional | Full duplex, line in and line out, G.711, G.726 |
| Conexiones de audio | Terminal block |
| Configuración remota | via web browser or supported video management software |
| Distancia de IR | up to 40 m (131 ft.) |
| Entrada de alarma | 1 dry alarm contact |
| Ethernet | 10/100/1000 Ethernet, auto sensing, half/full duplex (RJ45) |
| Longitud de onda de emisión de pico [nm] | 850.0 |
| Navegador web compatible | Internet Explorer 9+ |
| Número de LED IR | 6 high power / high efficiency SMD type |
| Protocolo de red | IPv4/v6, TCP/IP, UDP Unicast / Multicast, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, SNTP, QoS, ONVIF Profile S, IEEE 802.1X |
| Salida de alarma | 1 relay contact, 300V AC / DC at 130 mA maximum |
| Ángulo de iluminación | Full 60° |
| Cámara de luz visible (Set: 155) | |
|---|---|
| Balance de blancos | Auto / indoor / outdoor / ATW / manual |
| Compresión de retroiluminación | On / Off |
| Control de iris | P-iris |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Filtro de corte IR mecánico | Yes |
| Rango dinámico amplio | 2-shutter (93dB) / On / Off |
| Reducción de ruido | 2D / 3D / Color |
| Relación de señal y ruido | ±50 dB |
| Resolución del sensor | 2688 x 1520 |
| Sensibilidad | 0.3 (color)/0.04 (BW), 0 Lux with IR illuminator ON, measured with DSS OFF at 30 IRE |
| Sensor de imagen | 1/3° BSI CMOS |
| Tipo de lente | CB-6204-11-I: Varifocal 3-8mm, 96°-38° HFOV, F1.4 CB-6204-21-I: Varifocal 7-22mm, 42°-14° HFOV, F1.4 Motorized with auto-focus, Auto-Iris/P-Iris, D/N |
| Vídeo y grabación | |
|---|---|
| Ancho de banda de vídeo | Configurable between 64Kbps and 20Mbps |
| Compresión de vídeo | Fully compliant multi-stream H.264 main/high/SVC/baseline profile + MJPEG (FHD) |
| Control de frecuencia | CBR/VBR |
| Detección de movimiento en vídeo | On / Off / schedule |
| Grabación en tarjeta SD | microSDXC up to 128GB (Class 10) |
| Rango de resolución | Scalable from CIF to QHD 1440p |
| Rendimiento máximo | H.264 30/25 FPS @ 1440p + D1 (NTSC/ PAL) or H.264 15/12 FPS @ 1440p + 720p + D1 (NTSC/PAL) |
