Discontinued

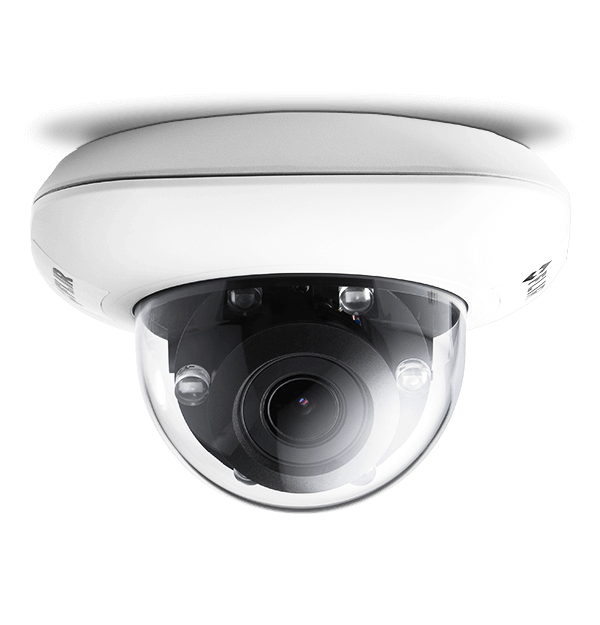

Quasar Quad HD Mini-Dome
The Ariel CM-3102 camera series with Full HD 1080p video guarantees frame rates in high motion, complex and low light scenes and lowers overall utility costs and carbon footprint
Especificaciones
| General | |
|---|---|
| AES | 1.0 to 1 / 10,000 (auto) |
| Detección de manipulación | On / Off / schedule |
| Modo de día/noche | Smart / Auto / On / Off |
| Modo de escaneo | Progressive |
| Zonas de privacidad | On / Off - 5 zones |
| Medición y análisis | |
|---|---|
| Control de ganancia automático | Auto |
| Integración de sistema | |
|---|---|
| Audio bidireccional | Full duplex, line in and line out, G.711, G.726 |
| Conexiones de audio | Terminal block |
| Distancia de IR | up to 40 m (131 ft.) |
| Número de LED IR | 6 high power / high efficiency SMD type |
| Ángulo de iluminación | Full 60° |
| Cámara térmica | |
|---|---|
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Sensibilidad | 0.3 (color)/0.04 (BW), 0 Lux with IR illuminator ON, measured with DSS OFF at 30 IRE |
| Sensor de imagen | 1/3" BSI CMOS |
| Cámara de luz visible (Set: 155) | |
|---|---|
| Balance de blancos | Auto / indoor / outdoor / ATW / manual |
| Compresión de retroiluminación | On / Off |
| Control de iris | P-iris |
| DSS | 1/1 to 1/25 or 1/30 with up to 32x sensitivity boost in color or night mode |
| Filtro de corte IR mecánico | Yes |
| Rango dinámico amplio (multiobturador) | 2-shutter (93dB) / On / Off |
| Reducción de ruido | 2D / 3D / Color |
| Relación de señal y ruido | ±50 dB |
| Resolución del sensor | 2688 x 1520 |
| Sensibilidad | 0.3 (color)/0.04 (BW), 0 Lux with IR illuminator ON, measured with DSS OFF at 30 IRE |
| Sensor de imagen | 1/3" BSI CMOS |
| Tipo de lente | CM-6204-11-I: Varifocal 3-8mm, 96°-38° HFOV, F1.4 CM-6204-21-I: Varifocal 7-22mm, 42°-14° HFOV, F1.4 Motorized with auto-focus, Auto-Iris/P-Iris, D/N |
| Vídeo y grabación | |
|---|---|
| Ancho de banda de vídeo | Configurable between 64Kbps and 20Mbps |
| Compresión de vídeo | Fully compliant multi-stream H.264 main/high/SVC/ baseline profile + MJPEG (FHD) |
| Control de frecuencia | CBR/VBR |
| Detección de movimiento en vídeo | On / Off / schedule |
| Grabación en tarjeta SD 1 | Micro SDXC up to 128GB (Class 10) |
| Rango de resolución | Scalable from CIF to QHD 1440p |
| Rendimiento máximo | H.264 30/25 FPS @ 1440p + D1 (NTSC/PAL) or H.264 15/12 FPS @ 1440p + 720p + D1 (NTSC/PAL) |
Recursos y asistencia
Note: You must be logged in to download software or firmware. Login or create an account.
Firmware Download
Quasar CM-6206 Firmware (v. 20160805)
Software Download
FLIR DNA Software - Version 2.3.0.35
Software Release Note
FLIR Discovery Network Assistant (DNA) Software Release Note v2.3.0.35
User Manual
FLIR Cyber Hardening Guide
Export Restrictions
