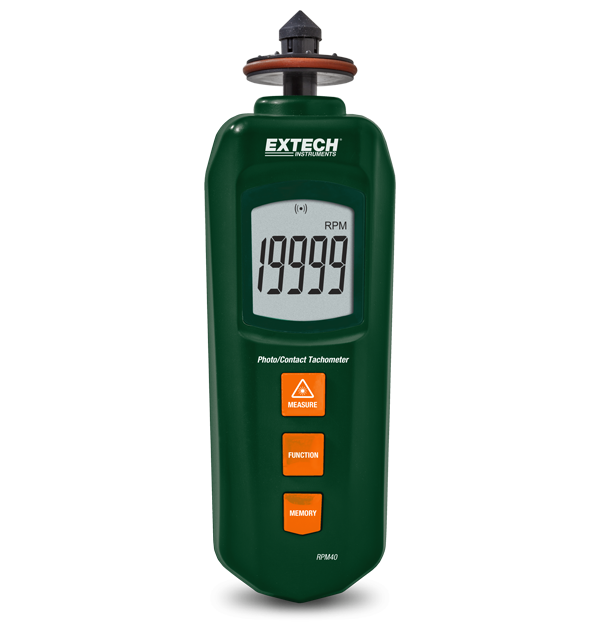

Extech RPM40
Combination Contact/Laser Photo Tachometer
The Extech RPM40 is a pocket Contact/Laser Photo Tachometer that provides wide RPM (photo/contact) and linear surface speed measurements. The characters on display reverse direction depending on which measurement mode is currently in use. The narrow beam laser photo tachometer is for accurate, non contact RPM measurements up to 1.5 m (4.9 ft) from the target for improved safety and accessibility. Complete with cone tip and wheel for RPM or linear surface speed, four 1.5 V AAA batteries, and reflective tape.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Precisión básica de velocidad de rotación (contacto) | ±(0.1% of reading +1 digit) |
| Precisión básica de velocidad de rotación (estrobo) | ±(0.1% of reading +1 digit) |
| Precisión básica de velocidad de superficie (contacto) | ±(0.1% of reading +1 digit) |
| Resolución máx. de velocidad de rotación (contacto) | 0.1rpm (< 1000 rpm); 1rpm (> 1000 rpm) |
| Resolución máx. de velocidad de rotación (estrobo) | 0.1rpm (< 1000 rpm); 1rpm (> 1000 rpm) |
| Tiempo de muestreo (contacto) | 1sec (> 6 rpm) |
| Tiempo de muestreo (foto) | 1 sec (> 60 rpm) |
| Velocidad de rotación (contacto) | 0.5 to 19,999 rpm |
| Velocidad de rotación (estrobo) | 5 to 99,999 rpm |
| Velocidad de superficie (contacto) | 2.0 to 78,740 in/min, 0.2 to 6560 ft/min, 0.05 to 1999.9 m/min |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × AA (1.5V) batteries |
| Certificaciones | CE |
| Dimensiones | 6.2 × 2.0 × 1.3" (160 × 50 × 33 mm) |
| Garantía | 2 years |
| Peso | 6.4oz (182g) |
Resources & Support
User Manual
Manual del usuário de Extech RPM40
Datasheet
Extech RPM40 Datasheet
User Manual
Extech RPM40 User Manual
Certification
Extech RPM40 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
