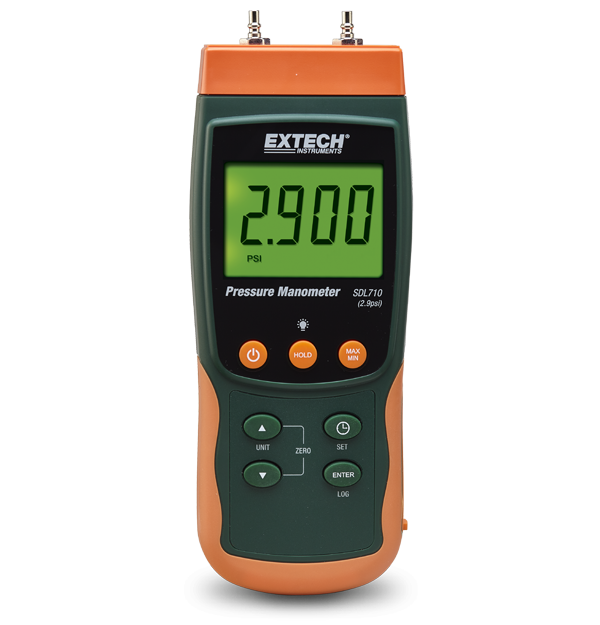

Extech SDL710

Manómetros de presión diferencial/registradores de datos

El SDL710 de Extech mide y registra lecturas de presión de rango bajo de 2,9 psi (200 mbar). Incluye entradas diferenciales dobles con sensores internos. Almacene manualmente hasta 99 lecturas, mientras que la tarjeta de memoria SD (incluida) permite el registro continuo de datos. Las lecturas se pueden exportar fácilmente a un formato Excel® para su posterior análisis.

Especificaciones

Especificaciones generales (Extech)
Pressure [atmosphere] 0,197 atm
Pressure [atmosphere] Basic Accuracy ±2 % escala completa
Pressure [atmosphere] Max Resolution 0,001 atm
Pressure [hPa] 200 hPa
Pressure [hPa] Basic Accuracy ±2 % escala completa
Pressure [hPa] Max Resolution 0,1 hPa
Pressure [inH2O] 80,2 inH₂O
Pressure [inH2O] Basic Accuracy ±2 % escala completa
Pressure [inH2O] Max Resolution 0,05 inH₂O
Pressure [inHg] 5,905 inHg
Pressure [inHg] Basic Accuracy ±2 % escala completa
Pressure [inHg] Max Resolution 0,002 inHg
Pressure [kgcm2] 0,204 kg/cm²
Pressure [kgcm2] Basic Accuracy ±2 % escala completa
Pressure [kgcm2] Max Resolution 0,001 kg/cm²
Pressure [kPa] 20 kPa
Pressure [kPa] Basic Accuracy ±1 % a escala completa
Pressure [kPa] Max Resolution 0,01 kPa
Pressure [mbar] 200 mba
Pressure [mbar] Basic Accuracy ±2 % escala completa
Pressure [mbar] Max Resolution 0,1 mbar
Pressure [mH2O] 2,04 mH₂O
Pressure [mH2O] Basic Accuracy ±2 % escala completa
Pressure [mH2O] Max Resolution 0,001 mH₂O
Pressure [mmHg] 150 mmHg
Pressure [mmHg] Basic Accuracy ±2 % escala completa
Pressure [mmHg] Max Resolution 0,1 mmHg
Pressure [psi] 2,9 psi
Pressure [psi] Basic Accuracy ±2 % escala completa
Pressure [psi] Max Resolution 0,001 psi
Detalles adicionales
Certifications CE
Dimensions 7,5 × 2,7 × 1,8 pulgadas (190 × 68 × 45 mm)
Power 6 baterías AA (1,5 V)
Warranty 2 años
Weight 0,59 lb (265 g)
