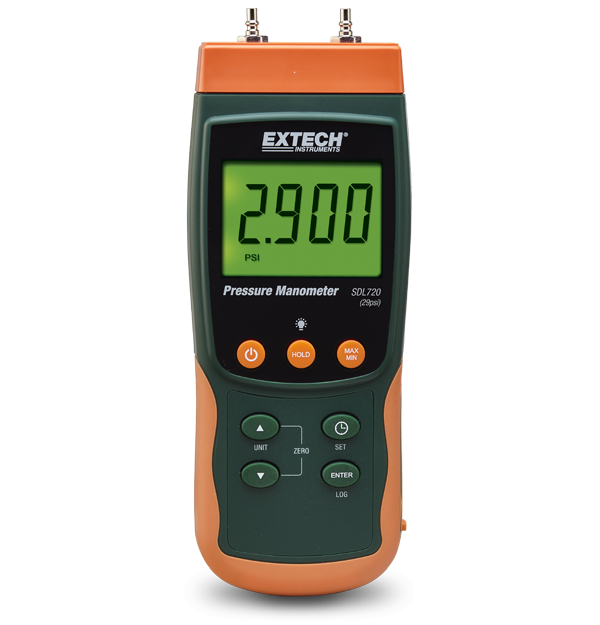

Extech SDL720

Manómetro/registrador de datos de presión diferencial

Mida y registre lecturas de presión de rango medio de 29 psi (2000 mbares). Entradas diferenciales dobles con sensores internos. Almacene manualmente hasta 99 lecturas, mientras que la tarjeta de memoria SD (incluida) permite el registro continuo de datos y las lecturas se pueden exportar fácilmente a un formato Excel® para su posterior análisis.

Especificaciones

Especificaciones generales (Extech)
Pressure [atmosphere] 1,974 atm
Pressure [atmosphere] Basic Accuracy ±2 % a escala completa
Pressure [atmosphere] Max Resolution 0,001 atm
Pressure [hPa] 2000 hPa
Pressure [hPa] Basic Accuracy ±2 % a escala completa
Pressure [hPa] Max Resolution 1 hPa
Pressure [inH2O] 802 inH₂O
Pressure [inH2O] Basic Accuracy ±2 % A escala completa
Pressure [inH2O] Max Resolution 0,5 inH₂O
Pressure [inHg] 59,06 inHg
Pressure [inHg] Basic Accuracy ±2 % A escala completa
Pressure [inHg] Max Resolution 0,02 inHg
Pressure [kgcm2] 2,040 kg/cm ²
Pressure [kgcm2] Basic Accuracy ±2 % a escala completa
Pressure [kgcm2] Max Resolution 0,001 kg/cm ²
Pressure [kPa] 200 kPa
Pressure [kPa] Basic Accuracy ±1 % a escala completa
Pressure [kPa] Max Resolution 0,1 kPa
Pressure [mbar] 2000 mbares
Pressure [mbar] Basic Accuracy ±2 % a escala completa
Pressure [mbar] Max Resolution 1 mbar
Pressure [mH2O] 20,40 mH₂O
Pressure [mH2O] Basic Accuracy ±2 % a escala completa
Pressure [mH2O] Max Resolution 0,01 mH₂O
Pressure [mmHg] 1500 mmHg
Pressure [mmHg] Basic Accuracy ±2 % a escala completa
Pressure [mmHg] Max Resolution 1 mmHg
Pressure [psi] 29 psi
Pressure [psi] Basic Accuracy ±2 % a escala completa
Pressure [psi] Max Resolution 0,01 psi
Detalles adicionales
Certifications CE
Dimensions 190 × 68 × 45 mm (7,5 × 2,7 × 1,8")
Power 6 pilas AA (1,5 V)
Warranty 2 años
Weight 265 g (0,59 lbs)
