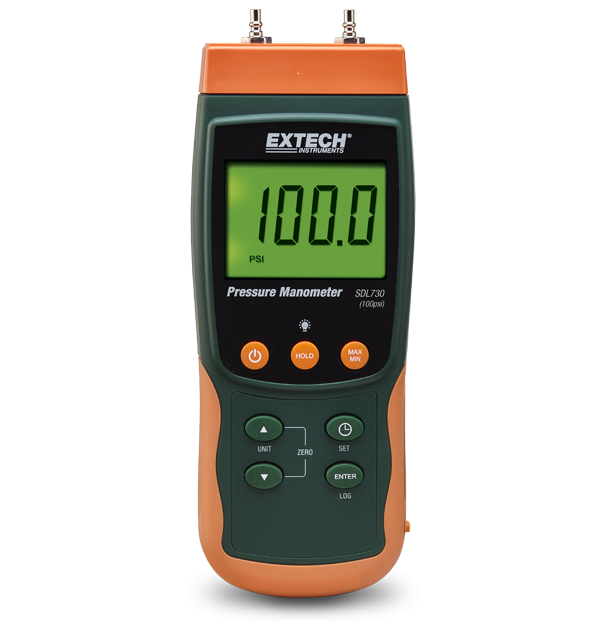

Extech SDL730

Manómetro/registrador de datos de presión diferencial

Mida y registre lecturas de presión de alto rango de 101,5 psi (7000 mbares). Entradas diferenciales dobles con sensores internos. Almacene manualmente hasta 99 lecturas, mientras que la tarjeta de memoria SD (incluida) permite el registro continuo de datos y las lecturas se pueden exportar fácilmente a un formato Excel® para su posterior análisis.

Especificaciones

Especificaciones generales (Extech)
Pressure [atmosphere] 6,905 atm
Pressure [atmosphere] Basic Accuracy ±2 % escala completa
Pressure [atmosphere] Max Resolution 0,005 atm
Pressure [hPa] 7000 hPa
Pressure [hPa] Basic Accuracy ±2 % a escala completa
Pressure [hPa] Max Resolution 5 hPa
Pressure [inH2O] 2810 inH₂O
Pressure [inH2O] Basic Accuracy ±2 % a escala completa
Pressure [inH2O] Max Resolution 2 inH₂O
Pressure [inHg] 206,7 inHg
Pressure [inHg] Basic Accuracy ±2 % escala completa
Pressure [inHg] Max Resolution 0,1 inHg
Pressure [kgcm2] 7,135 kg/cm²
Pressure [kgcm2] Basic Accuracy ±2 % a escala completa
Pressure [kgcm2] Max Resolution 0,005 kg/cm²
Pressure [kPa] 700 kPa
Pressure [kPa] Basic Accuracy ±1 % a escala completa
Pressure [kPa] Max Resolution 0,5 kPa
Pressure [mbar] 7000 mbares
Pressure [mbar] Basic Accuracy ±2 % escala completa
Pressure [mbar] Max Resolution 5 mbares
Pressure [mH2O] 71,35 mH₂O
Pressure [mH2O] Basic Accuracy ±2 % escala completa
Pressure [mH2O] Max Resolution 0,05 mH₂O
Pressure [mmHg] 5250 mmHg
Pressure [mmHg] Basic Accuracy ±2 % a escala completa
Pressure [mmHg] Max Resolution 5 mmHg
Pressure [psi] 101,5 psi
Pressure [psi] Basic Accuracy ±2 % a escala completa
Pressure [psi] Max Resolution 0,05 psi
Detalles adicionales
Certifications CE
Dimensions 190 × 68 × 45 mm (7,5 × 2,7 × 1,8")
Power 6 pilas AA (1,5 V)
Warranty 2 años
Weight 0,59 lb (265 g)
