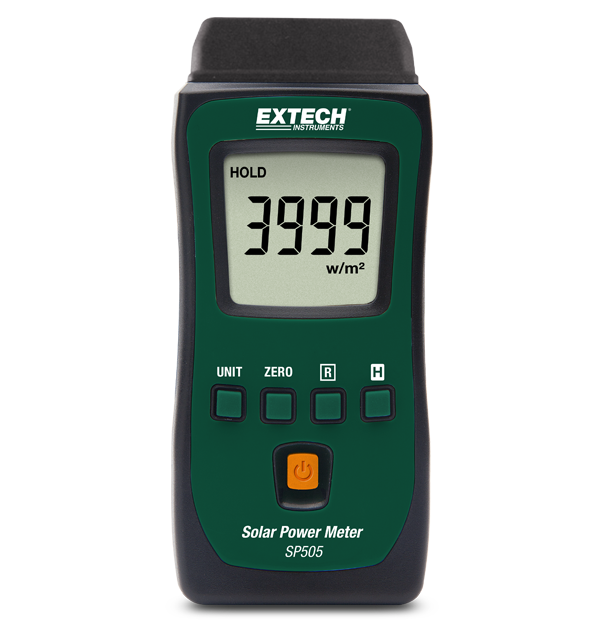

Extech SP505
Pocket Solar Power Meter
Extech’s SP505 measures solar power level from sunlight outdoors to determine the best location of solar panel and solar water heater installations. It is also used indoors by window manufacturers, the automotive industry, and remodeling home owners to check the level of solar radiation transmission through various glass thicknesses and degrees of tinting to use for window installations. The convenient, pocket-sized meter with a built-in precision solar light sensor is easy-to-use wherever you go.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Energía solar | 3999 W/m², 634 BTU/(ft²×h) |
| Precisión básica de energía solar | ±10 W/m², ±3 BTU/(ft²×h) or ±5% (whichever is greater) |
| Resolución máx. de energía solar | 1 W/m², 1 BTU/(ft²×h) |
| Respuesta espectral | 400 nm to 1100 nm |
| Detalles adicionales | |
|---|---|
| Alimentación | 2 × AAA (1.5V) batteries |
| Certificaciones | CE |
| Dimensiones | 4.3 × 1.9 × 1" (108 × 48 × 23mm) |
| Garantía | 2 years |
| Peso | 2.8oz (80g) |
Resources & Support
User Manual
Manual de usuario del Extech SP505
Datasheet
Extech SP505 Datasheet
User Manual
Extech SP505 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
