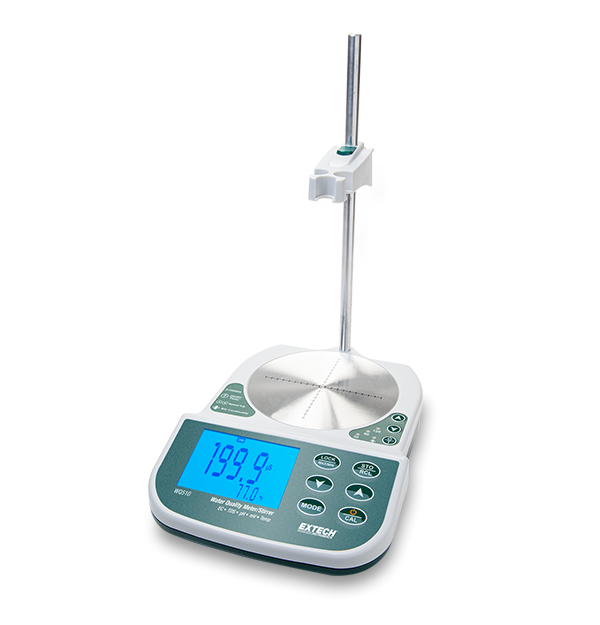

Extech WQ510
Benchtop Water Quality Meter/Stirrer
The Extech WQ510 is a 6 in 1 Benchtop Meter capable of measuring pH, ORP, conductivity, TDS, salinity, and temperature of liquids and semi-solids. The unit features a 30 min, 60 min, and 120 min timer or continuous stirring. It also has 2 or 3 point pH calibration, 1 point conductivity calibration, and automatic temperature compensation. This unit features a large backlit dual display, and the ability to store and recall 150 readings, as well as capture readings directly to a PC via the built-in USB interface. The WQ510 comes with pH glass electrode, conductivity cell, temperature probe, pH calibration solutions (4 pH and 7pH), conductivity calibration solutions (1413 µS and 12.88 mS), plastic burette, polishing paper, electrode clamp and rod, software and USB cable, AC adapter, stirrer, and user manual.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Conductividad | 0.0 to 100.0mS |
| Máx. resolución de POR | 0.1mV |
| pH | -2.00 to 16.00pH |
| POR | -1999 to + 1999mV |
| Precisión básica de conductividad | ±2%FS |
| Precisión básica de pH | ±0.02pH |
| Precisión básica de POR | ±2mV |
| Precisión básica de salinidad | ±2%FS |
| Precisión básica de TDS | ±2%FS |
| Precisión básica de temperatura (contacto) | ±1.8°F/1°C |
| Resolución máx. de conductividad | 0.1mS |
| Resolución máx. de pH | 0.01pH |
| Resolución máx. de salinidad | 0.1ppt |
| Resolución máx. de TDS | 0.1ppt |
| Resolución máx. de temperatura (contacto) | 0.1° |
| Salinidad | 0.0 to 50.0ppt |
| Temperatura (contacto) | 32 to 212°F (0 to 100°C) for pH |
| TSD | 0.0 to 66.0ppt |
| Detalles adicionales | |
|---|---|
| Alimentación | 100 to 240V AC adapter with US, EU, UK, and AU plugs |
| Certificaciones | CE |
| Dimensiones | 4 × 5.7 × 1.3" (103 × 145 × 32mm) |
| Garantía | 2 years |
| Peso | 1.5lbs (700g) |
Resources & Support
User Manual
Manual del usuário de Extech WQ500 WQ510 WQ530
User Manual
Extech WQ500 WQ510 WQ530 User Manual
Certification
Extech WQ510 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
