Extech BR95
Compact Video Borescope

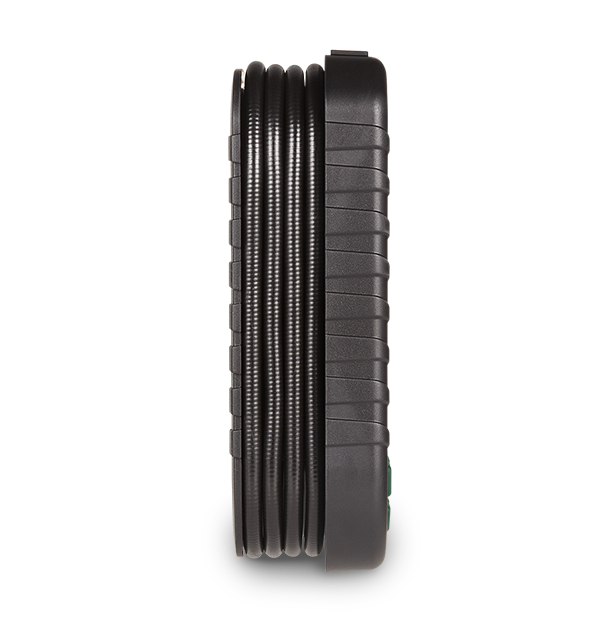

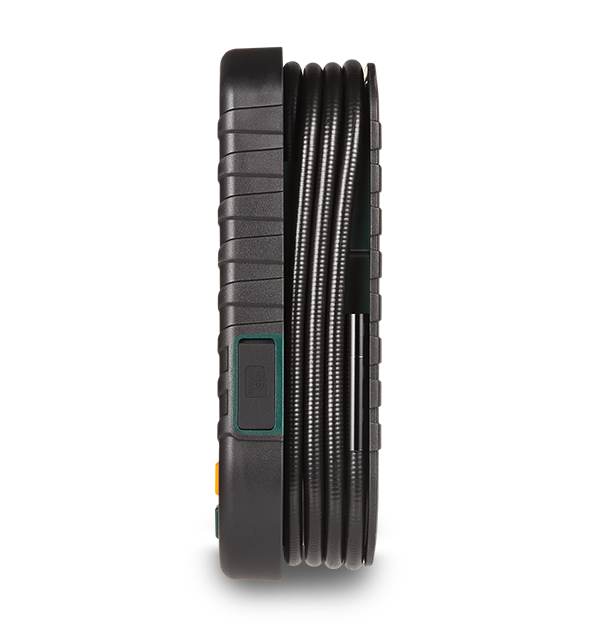

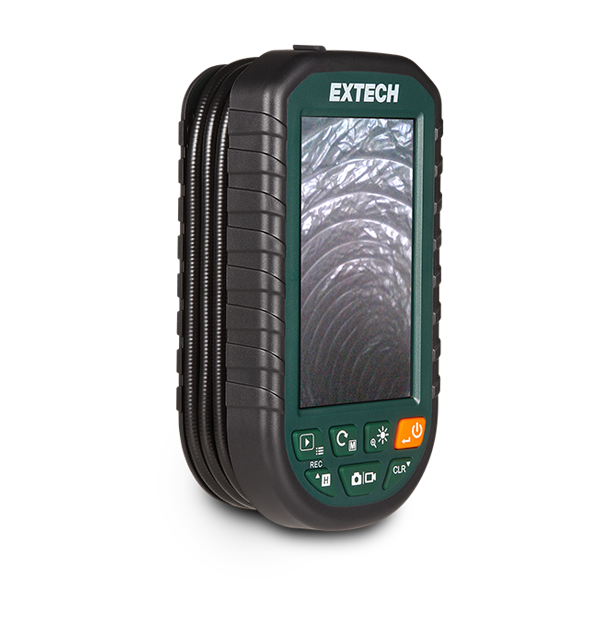

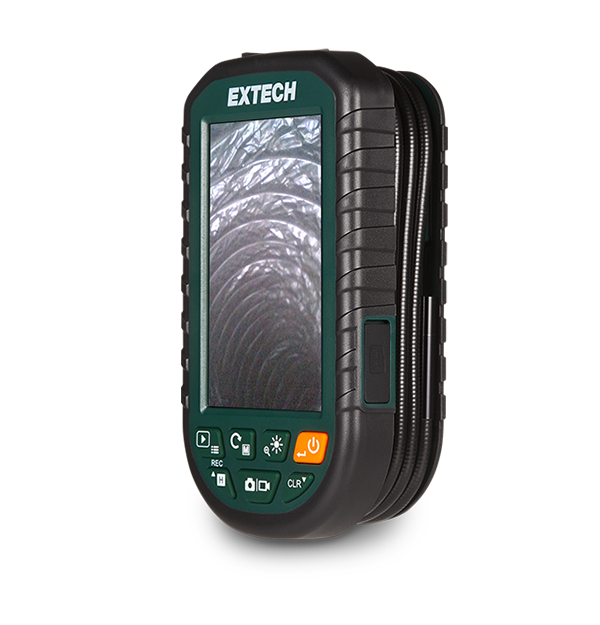

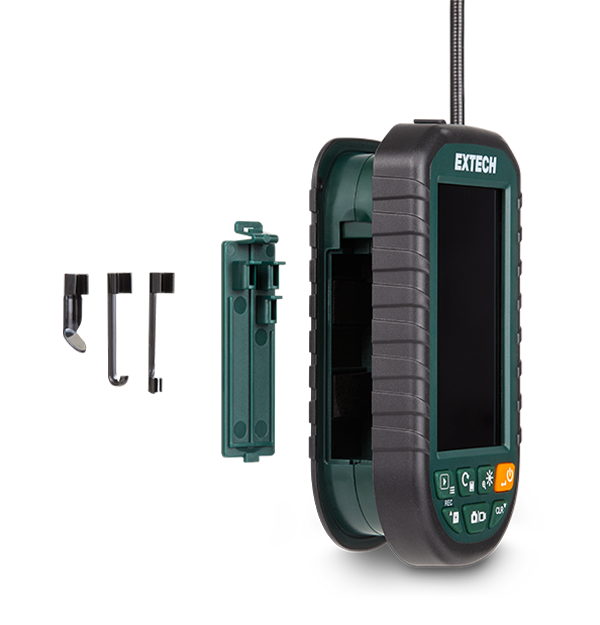

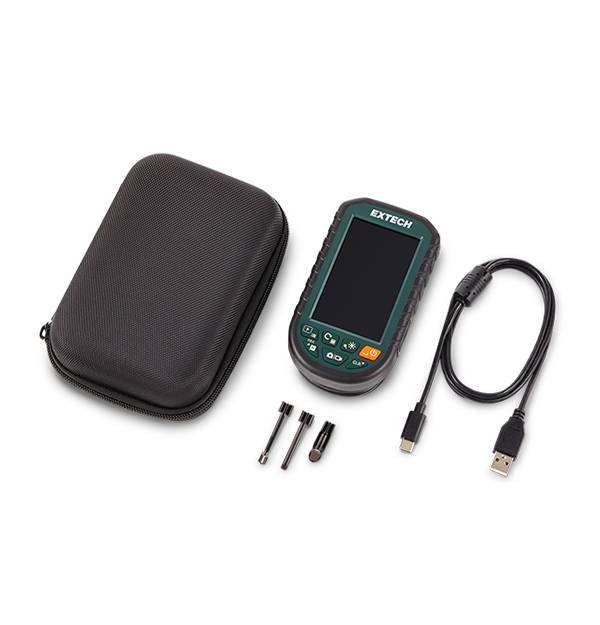

Extech’s palm-sized borescope includes a convenient compartment to coil the camera probe for easy storage. It features a waterproof (IP67) 5.5 mm camera probe with a 1 m flexible goose-neck cable that retains it’s configured shape. The camera delivers sharp 1280 × 720 resolution imaging, while the 3.5 in. IPS display provides clear viewing. Built-in bright LED lamps illuminate the inspection area, and additional features include 3x digital zoom, video recording capability, and microSD card storage for easy file management.
Capture and store clear images and videos with 1280 × 720 resolution
Get into tight spaces with a 5.5 mm camera diameter and 1 m probe

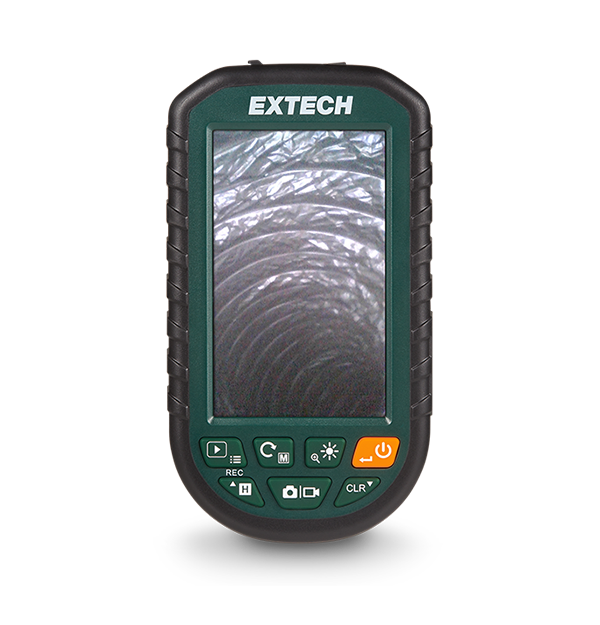

The BR95 features a 3.5 in IPS display, 800 × 480 resolution, 3x digital zoom, and image flip feature
仕様
| 一般仕様 | |
|---|---|
| カメラ視野の方向 | Forward |
| ケーブルの長さ | 1 m (3.28 ft) |
| ズーム | Digital 1x, 2x, 3x |
| データログ間隔 | Configurable: 5s, 15s, 30s, 1 min |
| プローブの柔軟性 | Semi-Rigid |
| メモリ | 16 GB MicroSD card included (supports up to 256 GB) |
| 最小曲げ半径 | 14 mm (0.56 in) |
| 焦点距離 | 35 mm to 60 mm (1.4 in to 2.4 in) |
| 直径 | 5.5 mm (0.22 in) |
| 視野角 | 68° |
| 解像度 | Camera Probe: 1280 × 720 |
| 追加の詳細 | |
|---|---|
| IP等級 | IP67 (Camera Probe only) |

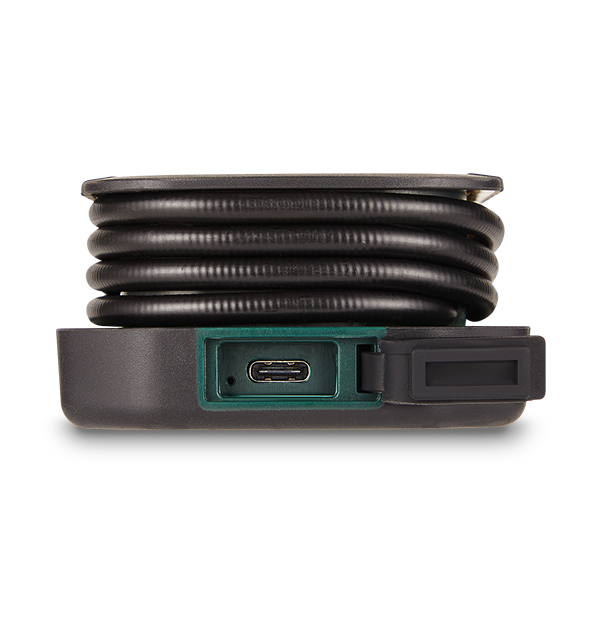

| コネクター | USB Type-C |
| ディスプレイ | 3.5 in IPS Display (800 × 480) |
| データログ取り | Available only when the compatible external USB sensor is connected |
| 使用条件 | 0°C to 45°C (32°F to 113°F), <85% RH |
| 保証 | 2 years |
| 出力 | 3.7 V Li-Ion Battery with 3.5 Hour Operating Time Auto Power Off: Configurable: 5 min, 10 min, 20 min, off |
| 寸法 | 129 × 73 × 39 mm (5.1 × 2.9 × 1.5 in) |
| 認証 | CE, UKCA |
| 重量 | 262 g (0.58 lb) |
