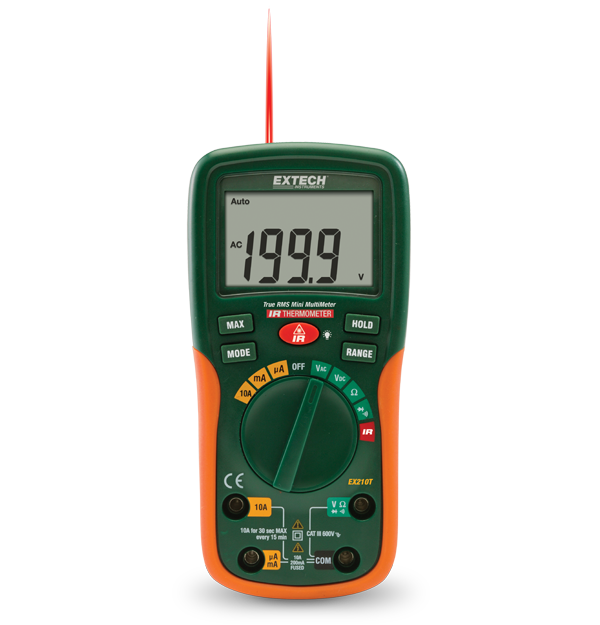

Extech EX210T
TrueRMS Digital Multimeter with IR
The Extech EX210T is a TrueRMS Digital Multimeter with IR. The meter auto ranges and has a 2000 count large LCD display. It measures AC/DC voltage and current, resistance, and temperature (IR). Its True RMS measurements make this meter more accurate and reliable when measuring distorted waveforms, and its built in IR thermometer has a 4:1 distance to target ratio, visually aided by the built in laser pointer. This meter has a CAT III 600 V safety rating and is complete with a year warranty, test leads, and a 9 V battery.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 600V |
| AC電圧の最大解像度 | 0.1mV |
| AC電流 | 10A |
| AC電流の最大解像度 | 0.1µA |
| DC電圧 | 600V |
| DC電圧の基本精度 | ±0.5% |
| DC電圧の最大解像度 | 0.1mV |
| DC電流 | 10A |
| DC電流の最大解像度 | 0.1µA |
| ダイオード試験 | Yes |
| 導通 | Yes |
| 抵抗 | 20MΩ |
| 抵抗の最大解像度 | 0.1Ω |
| 温度（IR）の基本精度 | -5 to 446 °F (-20 to 230 °C) |
| 温度（RTD） | 0.1°F/°C |
| 真の実効値 | Yes |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATIII - 600V |
| 寸法 | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| 認証 | CE, ETL |
| 重量 | 9.17oz (260g) |
