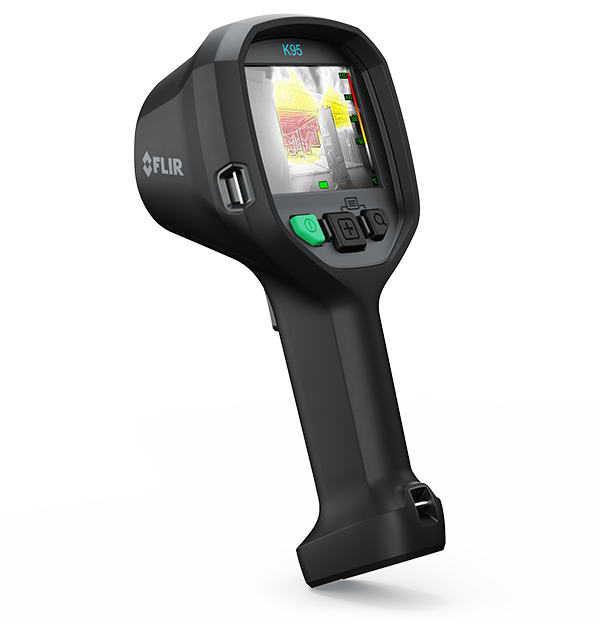

K95
Firefighting TIC, 95° Wide-Angle Field of View, 640 × 480, App-Enabled
The Flir K95 is the next generation of the K-Series, designed to give firefighters a clearer, more complete view before, during, and after every incident. Combining 640 × 480 thermal resolution with an expansive 95° field of view, the K95 reveals more of the scene in every glance. By reducing the need for constant scanning and panning, it helps crews understand room layouts, identify movement paths, assess fire development, and make faster, better-informed decisions during search and rescue and fire attack.
Its single-gain solution provides continuous, freeze-free imaging without losing critical scene information. From overheated doors and hidden fire spread to floor openings, the K95 helps firefighters recognize changing conditions sooner, attack fires more strategically, and manoeuvre through smoke-filled environments with greater confidence. Wireless connectivity to the Flir Responder App also simplifies camera configuration, enables live video streaming for training, and supports mission data sharing after the call.
仕様
| ハイライト表示 | |
|---|---|
| 赤外線解像度 | 640 × 480 |
| ディスプレイ | 4" LCD, 640 × 480, 60 Hz, backlit |
| 対象物温度範囲 | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| 画像モード | Basic, Search, Detection, High Heat, White Hot |
| イメージングとレンズ | |
|---|---|
| カメラ周波数 | 30 Hz |
| コントラスト最適化 | Flexible Scene Enhancement (FSX®) |
| スペクトル範囲 | 7.5µm to 14 µm |
| ズーム | 2x digital zoom |
| ピッチ | 12 µm |
| 検知器タイプ | Focal plane array (FPA), uncooled microbolometer |
| 温度分解能_NETD | <70 mK |
| 画像モード | Basic, Search, Detection, High Heat, White Hot |
| 視野角［FOV］ | 95° × 74° |
| 赤外線動画保存(温度情報なし) | Uncompressed colorized video using USB and MPEG-4 Stream over Wi-Fi to Flir Responder app |
| 赤外線動画録画(温度情報なし) | MPEG4 to internal flash memory |
| 赤外線解像度 | 640 × 480 |
| 環境と認定 | |
|---|---|
| ETSI|EMC | EN 301 489-1 RED
EN 301 489-17 EN 55032 Class B (Emission) EN 55035 (Immunity) EN 61000-6-2 Immunity according to Industrial EN 61000-6-3 380-480MHz EN 61000-6-3 800-960MHz EN 60945 Maritime equipment FCC 47 CFR part 15 B, cla |
| 使用温度範囲 | -20°C to 60°C (-4°F to 140°F)
150°C (302°F): 15 min 260°C (500°F): 5 min |
| 保存温度範囲 | -40°C to 85°C (-40°F to 185°F) |
| 保護 | IP67 (IEC 60529) |
| 振動 | 2 g (IEC 60068-2-6) |
| 湿度［動作時、保存時］ | IEC 60068-2-30/24 h 95 |
| 相対湿度 | 95% relative humidity 25°C to 40°C
(77°F to 104°F) non-condensing |
| 磁界 | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| 落下 | 2 m (6.6 ft) on concrete floor (IEC 60068-2-31) |
| 衝撃 | 25 g (IEC 60068-2-27) |
| 電波スペクトル | ETSI EN 300 328
ETSI EN 301 893 FCC 47 CFR part 15 RSS-247 |
| 電源 | |
|---|---|
| バッテリータイプ | Li-Ion |
| バッテリー容量 | 5.8 Ah, at 20°C to 25°C (68°F to 77°F) |
| バッテリー稼働時間 | Approx. 4 hours @ 25°C (77°F) ambient temperature and typical use |
| バッテリー電圧 | 3.7 V |
| 充電時間 | ≤3 h to capacity enough for 3 h operation |
| 充電温度 | 0°C to 45°C (32°F to 113°F) |
| 充電装置 | Desktop 2-bay charger
Optional in-truck charger |
| 安全性［電源］ | CE/EN/UL/CSA/PSE 60950-1 IEC 62368 |
| 電源管理 | For documents like MSDS and UN38.3 test reports/summaries, see: https://support.flir.com/resources/msds |
| 測定解析 | |
|---|---|
| 対象物温度範囲 | Single range solution operating: -20°C to 650°C (-4°F to 1202°F) |
| 一般仕様 | |
|---|---|
| 付属品リスト | Infrared camera
Battery (2 ea.) Battery charger Carabiner strap Power supply Printed documentation Retractable lanyard, 16 N (58 oz) USB cable |
| ユーザーインターフェース | |
|---|---|
| ディスプレイ | 4" LCD, 640 × 480, 60 Hz, backlit |
| 通信とデータ保存 | |
|---|---|
| Bluetooth | Bluetooth v. 5.0 EDR + BLE *PAN |
| USB | USB-C |
| WiFi | IEEE 802.11 b/g/n (2.4 GHz) |
| インターフェース | Update via OTA (Wi-Fi using the Flir Responder app)
Legacy support for updates from PC and data transfer to and from PC |
| ファイルフォーマット | Standard JPEG |
| 保存メディア | Internal flash memory |
| 画像保存 | Camera and Flir Responder app |
| 画像保存容量 | 200 files in total (N.B. The total number of files varies dependent on the number of saved video clips) |
アクセサリー
資料とサポート
Datasheet
FLIR K95 データシート
Warranty
FLIR Fire Service 2-5-10 Global Limited Warranty
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
