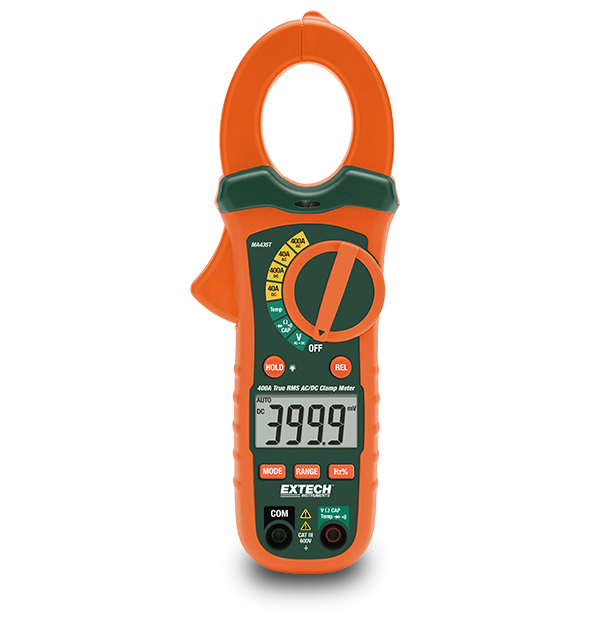

Extech MA435T
400A True RMS AC/DC Clamp Meter + NCV
The Extech MA435T is a compact, 400 A AC Clamp Meter that enables users to take measurements in tight spaces. The 30 mm (1.2 in) jaw opening can accommodate conductors up to 350 MCM. Featuring a large, four digit readout, the illuminated display is easy to see in poorly lit work areas, and the thumb dial selector is ergonomically placed for convenient, one-hand operation. It also has True RMS for better accuracy when measuring distorted waveforms. The MA435T’s multimeter functions include AC/DC voltage and current, resistance, capacitance, frequency, diode test, duty cycle, continuity, and thermocouple temperature. Also built into the MA435T is the non contact voltage (NCV) detector. Eliminating the need for a separate tester, the NCV detector uses a red LED to alert users to the presence of voltage on live wires. Additional features include data hold, auto power off, and low battery indication. Comes with test leads, 9 V battery, soft carrying case, and user manual.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 600V |
| AC電圧の基本精度 | ±(1.5% of reading + 5 digits) |
| AC電圧の最大解像度 | 0.1mV |
| AC電流 | 400A |
| AC電流の基本精度 | ±(2.5% of reading + 8 digits) |
| AC電流の最大解像度 | 0.01A |
| DC電圧 | 600V |
| DC電圧の基本精度 | ±(1.5% of reading + 2 digits) |
| DC電圧の最大解像度 | 0.1mV |
| DC電流 | 400A |
| DC電流の基本精度 | ±(2.5% of reading + 5 digits) |
| DC電流の最大解像度 | 0.01A |
| ジョーサイズ | 1.2" (30mm), conductors up to 350MCM |
| ダイオード試験 | Yes |
| 周波数 | 10Hz to 10kHz |
| 周波数の基本精度 | ±(1.5% of reading + 2 digits) |
| 導通 | Yes |
| 抵抗 | 40MΩ |
| 抵抗の最大解像度 | 0.1Ω |
| 温度（タイプK）の最大分解能 | -4 to 1400 °F/-20 to 760 °C |
| 温度（タイプN） | ±(3% of reading + 9°F/5°C) |
| 温度（タイプN）の基本精度 | 0.1°F/°C |
| 真の実効値 | Yes |
| 電気容量 | 100µF |
| 静電容量最大解像度 | 0.01nF |
| 非接触電圧（NCV）検出器 | Yes |
| 追加の詳細 | |
|---|---|
| ディスプレイ | 4000-count segment LCD |
| 保証 | 2 years |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATIII - 600V |
| 寸法 | 7.8 × 2.8 × 1.6" (197 × 70 × 40mm) |
| 認証 | CE, ETL |
| 重量 | 6.5oz (183g) |
