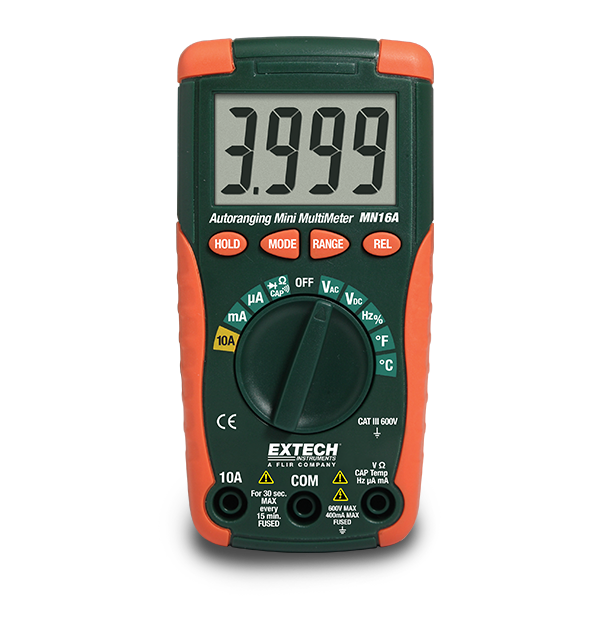

Extech MN16A
Digital Mini MultiMeter
The Extech MN16A is a Digital Mini Multimeter. It measures AC/DC voltage and current, resistance, capacitance, frequency, continuity, diode test, Type K temperature, and duty cycle. In addition, it has an auto power off with disable feature. Measurements are viewed on a large, easy to read LCD display. Product complete with two AAA batteries, general purpose Type K bead wire probe, and test leads.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 600V |
| AC電圧の基本精度 | ±1.5% |
| AC電圧の最大解像度 | 0.1mV |
| AC電流 | 10A |
| AC電流の基本精度 | ±1.8% |
| AC電流の最大解像度 | 0.1µA |
| DC電圧 | 600V |
| DC電圧の基本精度 | ±1.2% |
| DC電圧の最大解像度 | 1mV |
| DC電流 | 10A |
| DC電流の基本精度 | ±1.5% |
| DC電流の最大解像度 | 0.1µA |
| デューティサイクルの基本精度 | ±1.2% |
| 周波数 | 5MHz |
| 周波数の基本精度 | ±1.2% |
| 周波数の最大分解能 | 0.001Hz |
| 抵抗 | 40MΩ |
| 抵抗の最大解像度 | 0.1Ω |
| 温度（タイプK）の最大分解能 | -4 to 1400°F (-20 to 750°C) |
| 温度（タイプN） | ±(3% of reading + 9°F/5°C) |
| 温度（タイプN）の基本精度 | 0.1 ° |
| 負荷サイクル | 0.1 to 99.9% |
| 電気容量 | 100µF |
| 静電容量最大解像度 | 0.01nF |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 2 × AAA (1.5V) batteries |
| 安全性カテゴリー | CATIV - 600V |
| 寸法 | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| 認証 | CE, ETL |
| 重量 | 5.4oz (153g) |
