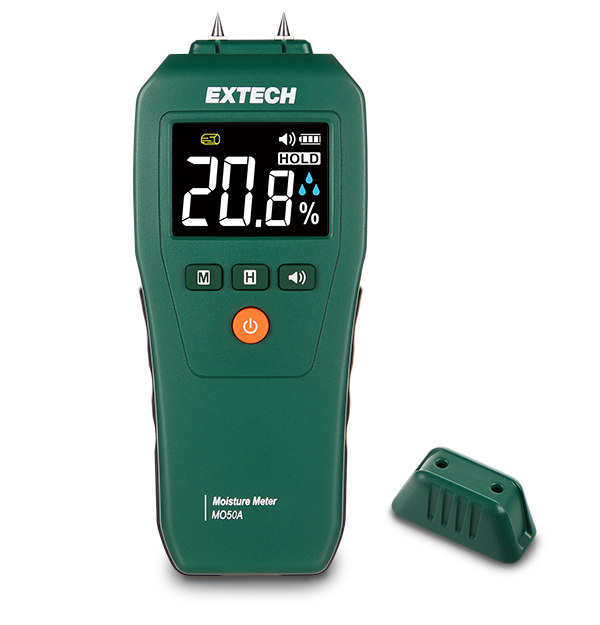

Extech MO50A
Compact Pin Moisture Meter
The MO50A Compact Pin-Type Moisture Meter makes it easy to take quick reference measurements on wood and building materials. It features a high-contrast color LCD with backlight for clear viewing in any lighting condition, along with intuitive display icons and audible alerts that simplify moisture level interpretation. Ideal for building restoration work, the MO50A helps detect moisture in floors, under carpets, behind walls, and in ceilings—making it an essential tool for assessing damage after water leaks.
Bright backlight makes for easy viewing in any lighting condition
Displays moisture levels in wood and building materials such as wall
board, sheet rock, cardboard plaster, concrete, and mortar
Tone rate beeps faster as the moisture level increases
仕様
| 一般仕様 | |
|---|---|
| WME水分含有量の基本精度（ピン） | ±(3% + 5 digits) at 22°C to 25°C (72°F to 77°F) |
| WME水分含有量の最大分解能（ピン） | 0.1% |
| WME水分含有量（ピン） | Wood Range: 5.0% to 50.0% Building Material Range: 1.5% to 33.0% |
| センサータイプ | Replaceable threaded contact pins, 8 mm (0.3 in) |
| 保存温度範囲 | 0°C to 50°C (32°F to 122°F); < 85% RH |
| 計測原理 | Electrical resistance using pins |
| 計測範囲 | Wood: Low: 1.5% to 16.9% Medium: 12% to 15.9% High: 16% to 50% Building Material Low: 1.5% to 16.9% Medium: 17% to 19.9% High: 20% to 33% |
| 追加の詳細 | |
|---|---|
| ディスプレイ | Backlit Color LCD |
| バッテリータイプ | 3 × 1.5 V, AAA batteries |
| 使用条件 | 5°C to 45°C (41°F to 113°F); < 80% RH |
| 保証 | 2 years |
| 出力 | After approx. 3 minutes |
| 寸法 | 171.6 × 68 × 32.5 mm (6.7 × 2.7 × 1.3 in) |
| 認証 | CE, UKCA |
| 重量 | 151 g (0.33 lb) excluding batteries |
資料とサポート
User Manual
Extech MO50A 取扱説明書
